Nucleo-LM476RG with IKS02A1 not identified when connected in MEMS studio

[Rohit_Goswami]

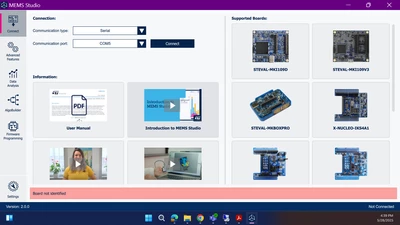

I have attached the X-NUCLEO-IKS02A1 on the NUCLEO-L476RG board and connected it to my laptop. I opened tge MEMS Studio and when I am trying to connect, it is showing Board Not Identified as shown in the attached snap.

How should I proceed further?

[KDJEM.1]

Hello @Rohit_Goswami;



Could you look at this MEMS-Studio: Module 3 - Getting Started with MEMS Studio and follow the steps to connect the board.



I hope this help you!

Thank you

Kaouthar
