problem about writing some datas to eeprom by I2C using stm32f429-disc1

[hbuca.1]

Hi,

I have a problem about I2C and I saw some topics about my problem on the internet but there was no solution, I hope you help me by sheding light on this.

Problem : After sending adress by I2C, the ADDR flag in SR1 register is not set but at the same time AF Flag(acknowledge failure) is setting up. I do not use std peripherial libraries and I use stm32f429I-Discovery kit and AT24C256. I2C communicates at 80 kHz

It stucks

while (!(I2C1->SR1 & 0x0002));

line, I could not find a solution. Please help me.

the code is below:

/* Includes ------------------------------------------------------------------*/

 #include "main.h"









 int main(void)

 {



 int slave_adress = 0x50; // eeprom adress

 int word_adress = 0x01; // I want to write in this register adress in eeprom.

 int data = 0x30; // the data I want to write











 RCC->AHB1ENR |= 1<<1; //enable port B





 RCC->APB1ENR |= 1<<21; // enable i2c_1











 GPIOB->MODER = 0x82000; // made PB6-I2C1_CLK ve PB9-I2C_SDA pins as alternate function



 GPIOB->AFR[0] = 0x4000000; // made pb6 as af4 (i2c1_scl)

 GPIOB->AFR[1] = 0x40; // made pb9 as af4 (i2c1_sda)







 GPIOB->OTYPER |= 0x00; //made PB6 and PB9 as open drain by adding resistor in real, here no need to make open drain on code





 GPIOB->PUPDR = 0x00;







 I2C1->CR2 = 0x0010;

 I2C1->CCR = 0x0064; // I2C communicates at 80 kHz

 I2C1->TRISE = 0x0011;



 I2C1->CR1 = 0x0001; //enable I2C





I2C1->CR1 |= 1<<8; //I2C Start



 while (!(I2C1->SR1 & 0x0001));// //wait for start bit,









 I2C1->DR = slave_adress; // Write to I2C Address register

 while (!(I2C1->SR1 & 0x0002)); //wait adress is sent (ADDR bit)/////////////it stucks here///////////////////////////









 I2C1->DR = word_adress; // (EV8_1 – reference manual)



 while (!(I2C1->SR1 & (1<<7))); // Wait TxE bit set



		I2C1->DR = data;





		while(!(I2C1->SR1 & 0x0080)); // Wait TxE bit set

		while(!(I2C1->SR1 & 0x0004)); // wait BTF(byte transfer complete)



		I2C1->CR1 |= 1<<9; // stop

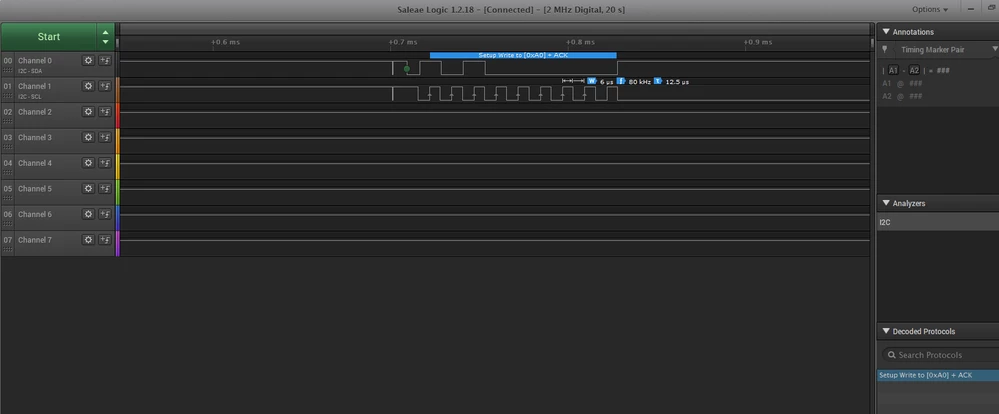

I put here logic analyzer picture when I start the code,
