Riverdi SDMMC1 FR_NOT_READY error

[efe_electronica]

 I am encountering the FR_NOT_READY and FR_INVALID_OBJECT error when trying to mount the SD card and write a file in RVT101HVSFWCA0 Riverdi display. Could you please advise on how to resolve these issues?

[Andrew Neil]

Have you asked Riverdi ?

https://riverdi.com/contact

[mƎALLEm]

Hello,

According to the examples provided under https://github.com/STMicroelectronics/STM32CubeH7/blob/master/Projects/STM32H745I-DISCO/Applications/FatFs/FatFs_Shared_Device/CM7/Src/main.c

I don't see that you linked the driver using  FATFS_LinkDriver().



 if(FATFS_LinkDriver(&MMC_Driver, MMCPath) == 0)
 {
 /* ..... Some code before */
 FS_FileOperations();
 }
}

static void FS_FileOperations(void)
{
 FRESULT res;
 uint32_t byteswritten, bytesread;

 /* Register the file system object to the FatFs module */
 if(f_mount(&MMCFatFs, (TCHAR const*)MMCPath, 0) != FR_OK)
 {
 goto error;
 }
 /* Some code after ... */



[efe_electronica]

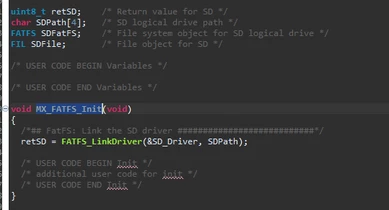

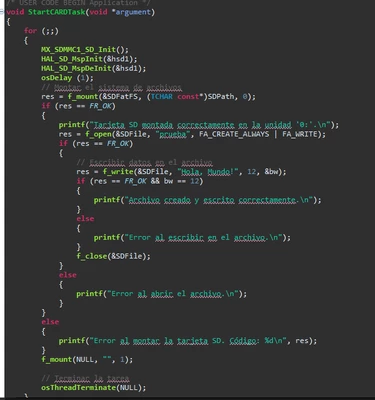

I reviewed the example you provided and corrected my code. The MX_FATFS_Init() function is executed before the StartCARDTask() function. Now I can mount the SD card but I still have the same error when using f_open() or f_write ().





[mƎALLEm]

Hello,

Please use </> button to show your code instead of sharing a screenshots of it.

What errors you get for these APIs?

What if you use the same example (as it is) from what I posted and adapt it to your Hardware (clocks+IOs)? do you get the same behavior?
