sending data using I2C on Simulink

[aFromInCirT]

Hi there,

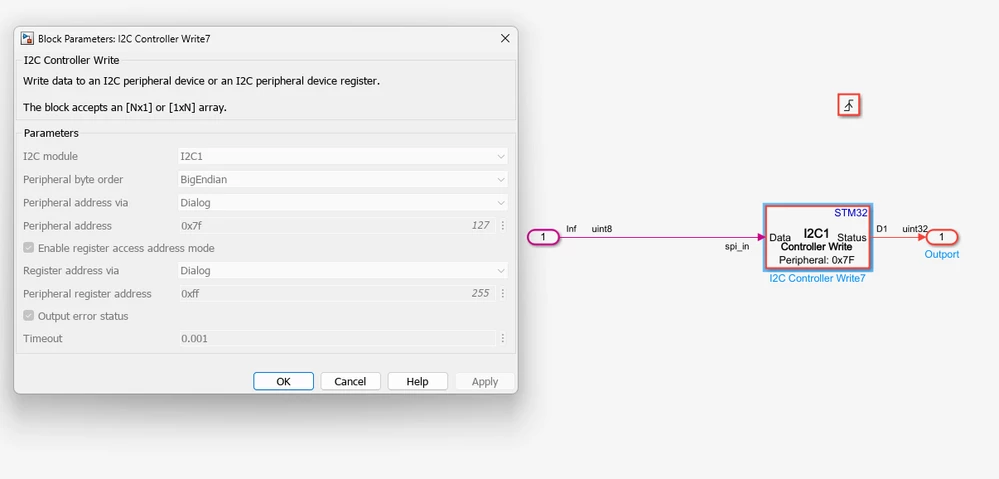

I'm using Nucleo-G474RE to send a bit stream over Simulink, instead of receiving 24 bits on the oscilloscope i can read only 8 bits, which are supposed to be the 8 bits in the middle that have the address of the peripheral and the status of the I2C block gives me 516 which is not on the documentation from matlab.

[Andrew Neil]

Simulink is a Mathworks product - nothing to do with ST - so you need to go to Mathworks for support:

https://uk.mathworks.com/help/

https://uk.mathworks.com/matlabcentral/

https://uk.mathworks.com/company/aboutus/contact_us.html
