STM32H750VBT6 & CubeMX & IAR

[BG1]

Hi everyone ;

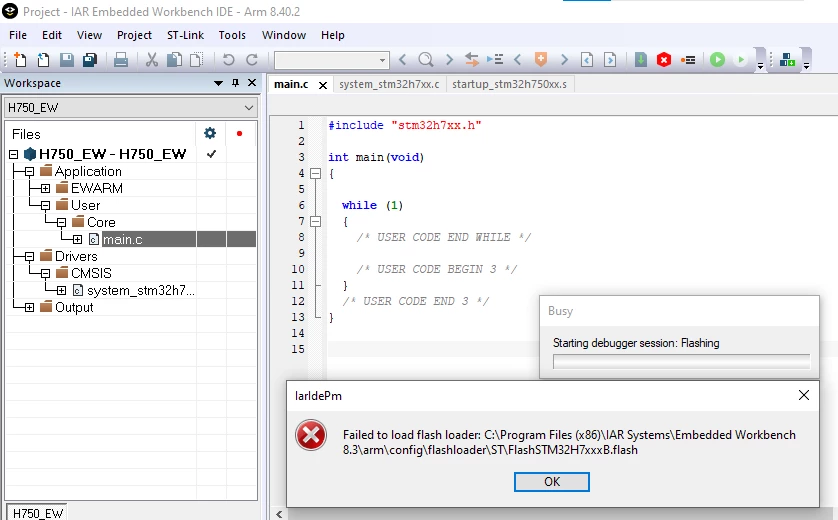

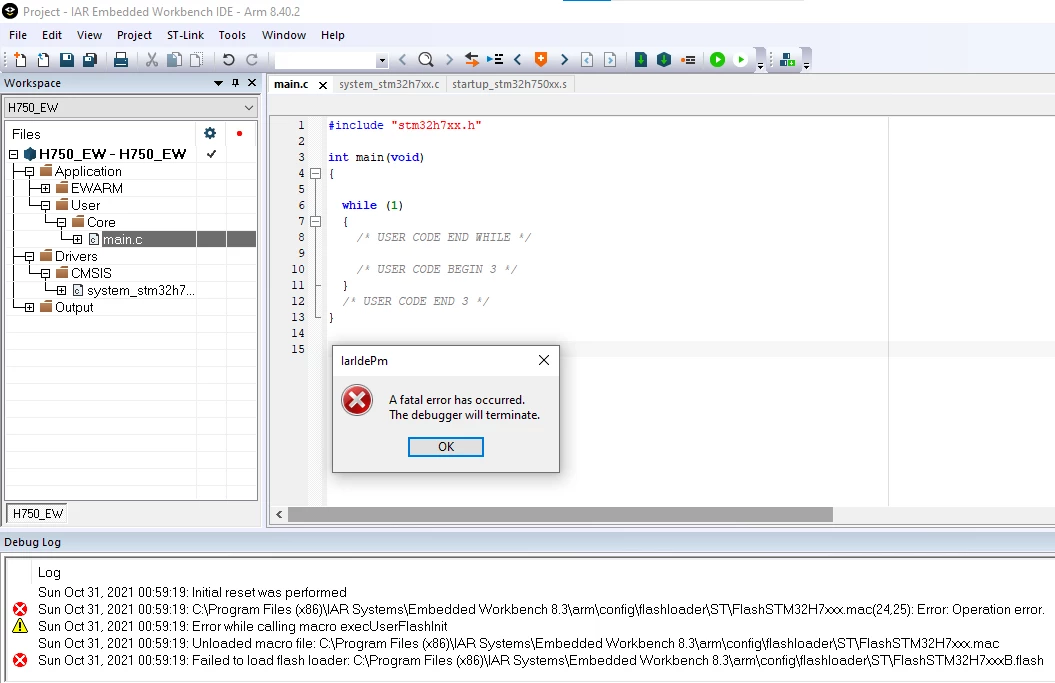

I am having a strange issue with IAR . I configured the mcu via cubemx and generated it then I build all the files but I got the errors in the attached files when I try to download the code into the MCU . But I don't get any issuse with the exact same configurations with KEIL . Where do I go wrong ? Any comment and approach would be appreciated so much .

[TDK]

> I configured the mcu via cubemx and generated it then I build all the files but I got the errors in the attached files when I try to download the code into the MCU .

It looks like your main.c file is missing a signification portion of the code that should be in there. For example, a code to HAL_Init is missing. You really didn't modify it? Can you include your IOC file?

[BG1]

I don’t wanna use hal driver so I deleted the hal files and it compiles succesfully and it works with keil , but it gives this error with IAR

[TDK]

Not real sure, looks to be an IAR issue. Ensure ST-Link connectivity works with STM32CubeProgrammer. Maybe try running it before modifying any code.

[Shirley.Ye]

Seems issue within the IAR and flash loader. Have you tried the latest IAR v8.5 ?

[BG1]

Yes It worked , I downloaded the latest version of IAR with kickstart edition it worked great ! Thanks !

[BG1]

I will immediately try and inform you about the result
