Chain STPM33 Clock

[Dominik_GUDE]

Hello,

is it possible to cascade multible STPM33 Chips?

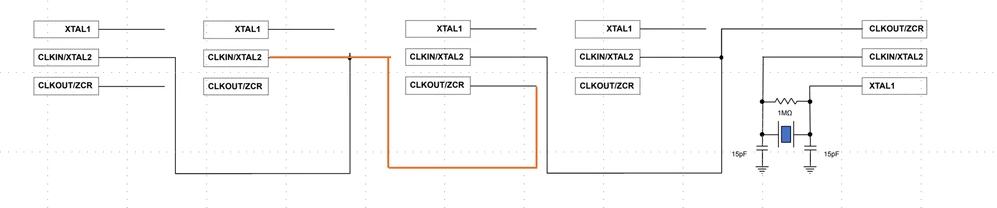

That means SPTM33 + Crystal as master -> two STPM33 CLKIN

-> Last CLKOUT -> two STPM33 CLKIN



[Didier HERROUIN]

Dear Dominik_GUDE,

You can cascade 2 STPM3x maximum.

Indeed, from 3 chipsets in cascade, the clock shape becomes deteriorated, especially the duty cycle which is too far from original 50%.

Best regards,

Didier Herrouin
