I need a 100 kHz, sinusoidal AC constant-voltage power supply, feeding an inductive load. Can i make a power inverter designed like a class D audio amplifier. Except, instead of a speaker, it's a hungry power load that wants up to 20A, 5V AC power. Can any chip or set of chips make this easy, for a 100W inverter?power source: 12V to 24V DC RMSanalog input: 100 kHz sinusoidoutput: 0V to 5V RMS sinusoid, 100Wup to 4 parallel inductive loadsup to 5A per load x 4 loads = 20A max, continuous20A x 5V = 100W continuousInductive loads are coupled inductorsI assume to regulate output voltage, i would change the amplitude of the input sinewave. Looking for lowest-parts-count solution.

Associate III

Question

"Class D" Inverter?

I need a 100 kHz, sinusoidal AC constant-voltage power supply, feeding an inductive load.

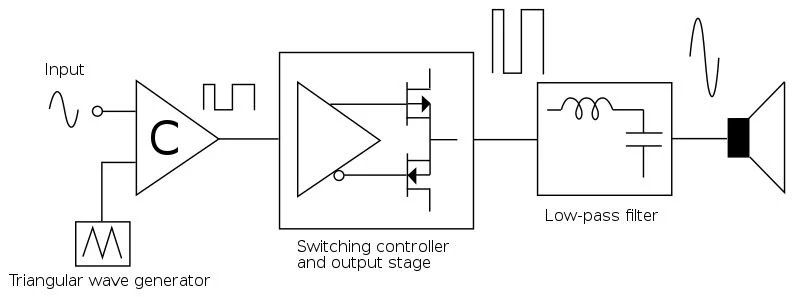

Can i make a power inverter designed like a class D audio amplifier.

Except, instead of a speaker, it's a hungry power load that wants up to 20A, 5V AC power.

Can any chip or set of chips make this easy, for a 100W inverter?

I assume to regulate output voltage, i would change the amplitude of the input sinewave.

Looking for lowest-parts-count solution.
