Doubt on how to interface a 5V circuit to a 3V microcontroller (STM32) - Input Pins

[Killstreet30]



Hello,

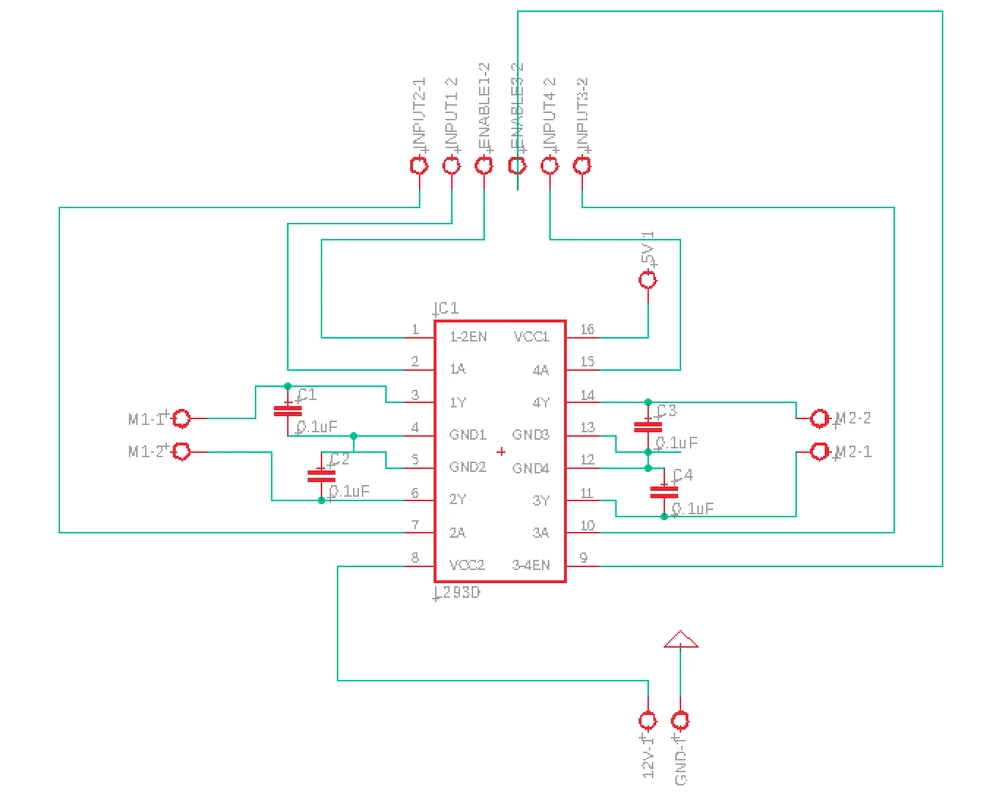

The input 1 and input2 signals will be fed from an STM32 but the problem is the signal sent from STM32 is 3.3V but the input to the IC is 5V. How do I convert the same? Please help.

[KnarfB]

Well, that good olde L293D.

This is a no brainer because even 3.3V supplied GPIO output generates 5V TTL compatible signal levels.

See data sheet of your chip.

Application note AN4899 "STM32 microcontroller GPIO hardware settings..." is worth reading.

[Killstreet30]

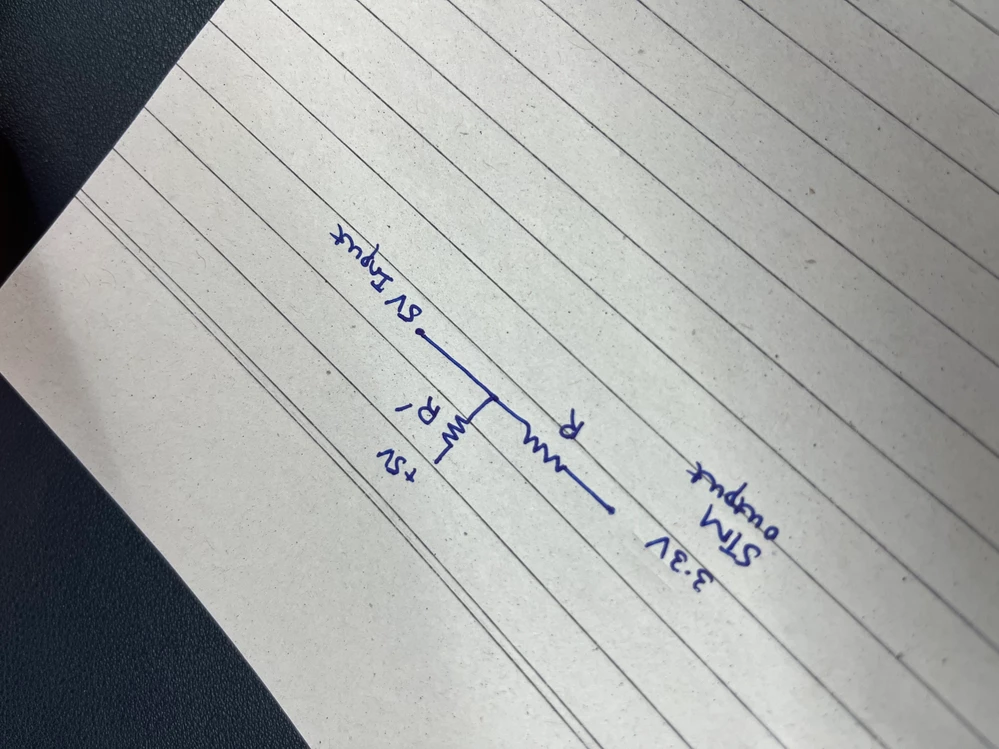

I thought I'll use this circuit but how will I calculate the R and R' values? Any idea?

[LCE]

That way you build a voltage divider so that the input will never see neither 0 V nor 5 V.

So better check the datasheet what "5V input" means (high / low thresholds, min / max over complete temperature range), then you might find that what KnarfB said is correct.

The most simple level shifter would be putting a npn transistor (or N-mosfet) "between" your 2 resistors, although then you would have an inverted signal.
