Exposed metal on leads of SCTWA60N120G2-4

  • August 20, 2023
  • 1 reply
  • 1065 views

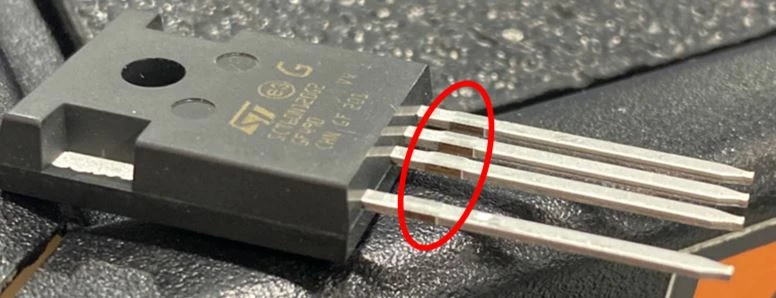

I'm using SCTWA60N120G2-4 for one of my power management PCB. However, I saw there is copper exposed on the component leads. Base on IPC 610-H requirement, exposed basic metal on component leads is defect, but it seems to me the expose metal is manufactory's design. I couldn't find any information in the datasheet or the tn1225 mounting instruction for through hole device package.
Please help
Appreciate everyone!

This topic has been closed for replies.

1 reply

RhSilicon
Lead
August 20, 2023

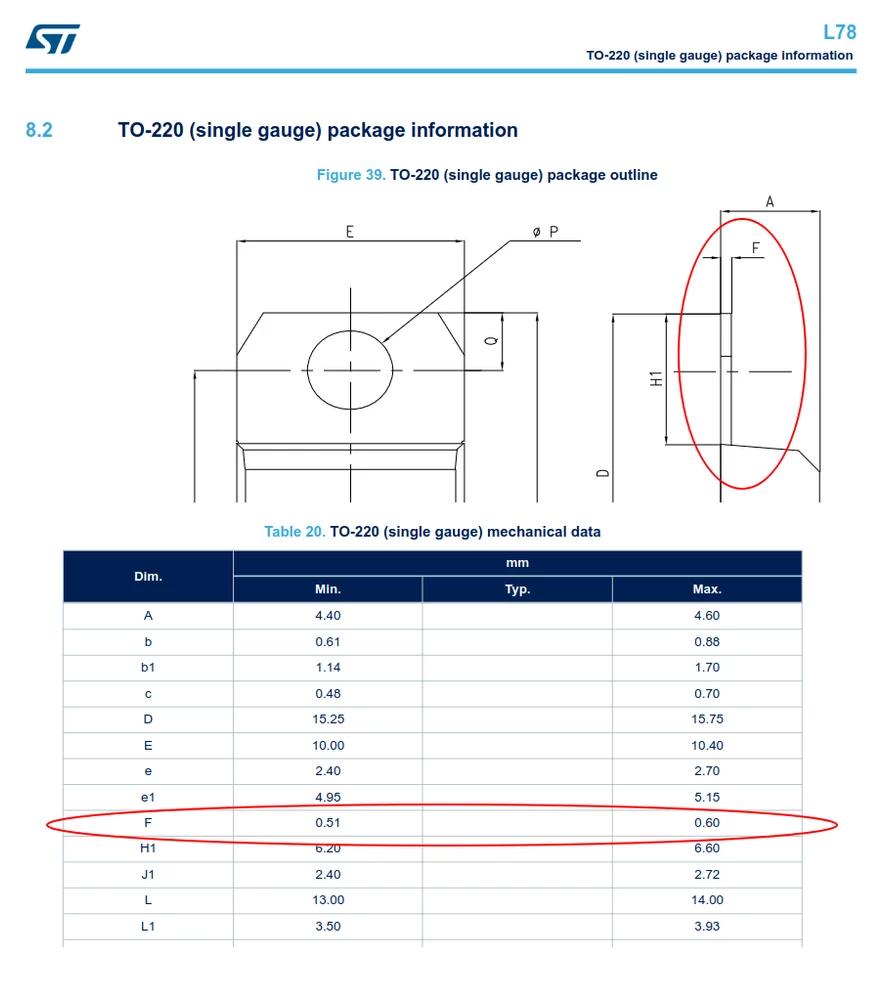

Unfortunately I have noticed a quality reduction of 78xx/79xx ST components, the TO-220 case attachment tab is half the thickness of the models I found before on devices:


https://www.st.com/resource/en/datasheet/l78.pdf

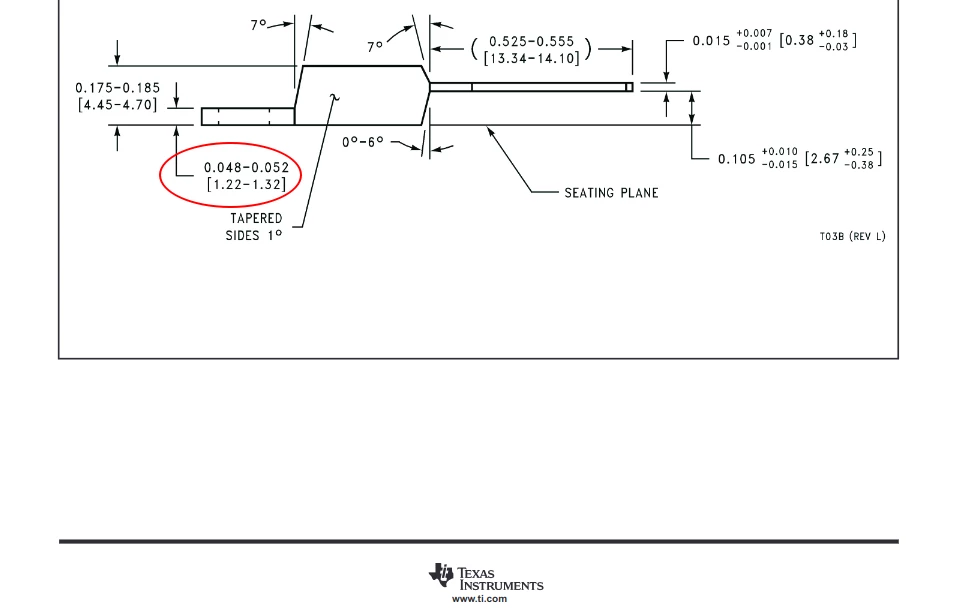

https://www.ti.com/lit/ds/symlink/lm340.pdf

Apparently the case of this SCCTWA60N120G2-4 was once much better:

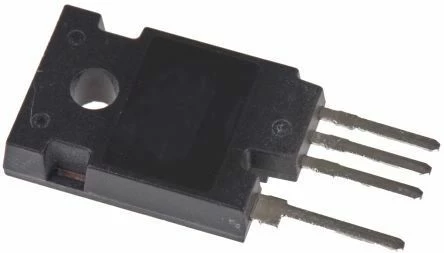

https://octopart.com/sctwa60n120g2-4-stmicroelectronics-112853626

AScha.3
Super User
August 20, 2023

copper so expensive these days... :)
