Help to identify a TVS?

  • February 25, 2022
  • 1 reply
  • 2227 views

I am trying to identify a transient voltage suppressor manufactured by ST that I need to replace.

I have not been able to determine the correct product based on the coding found on the package. Would anyone here be able to identify this TVS?

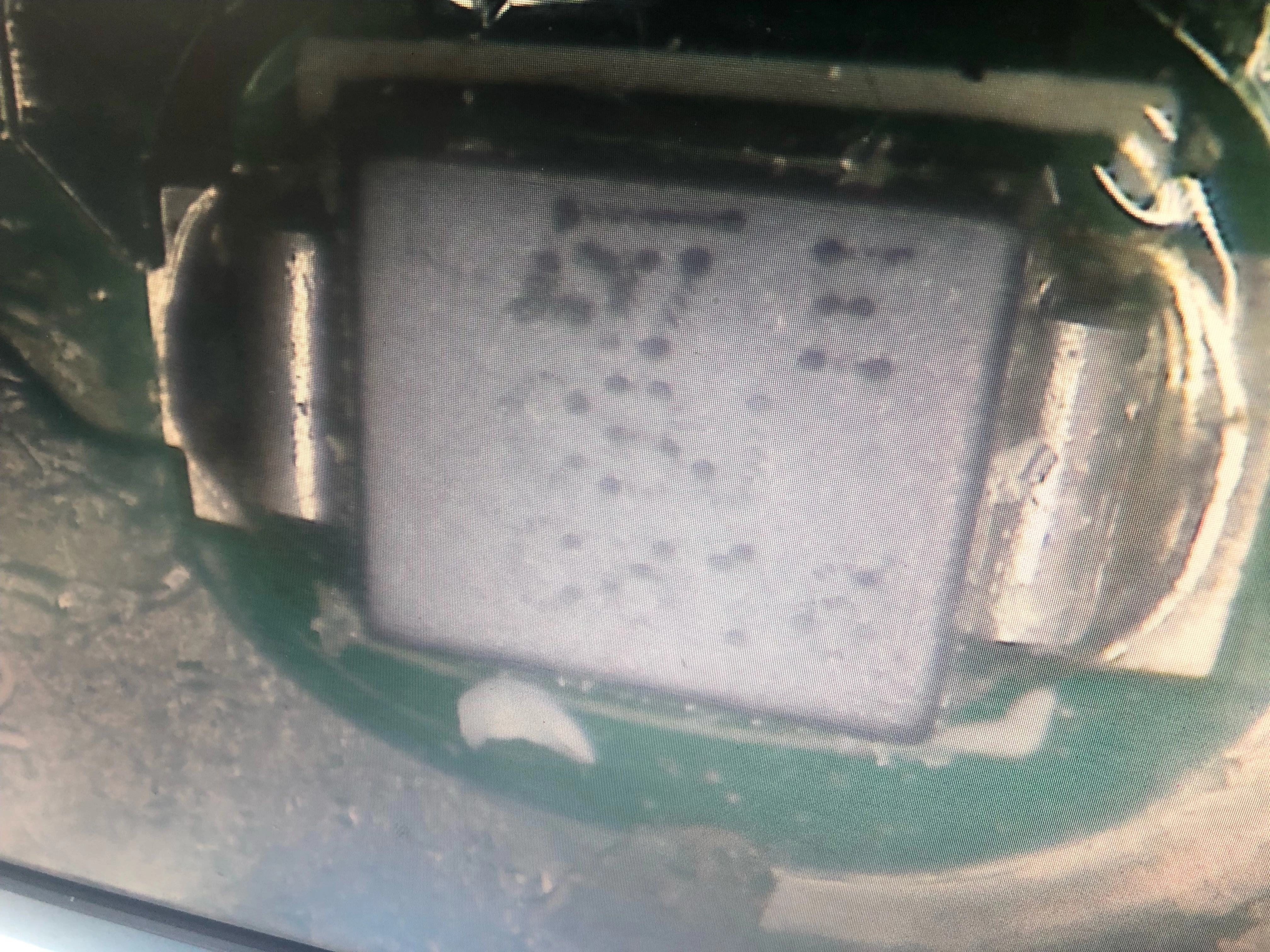

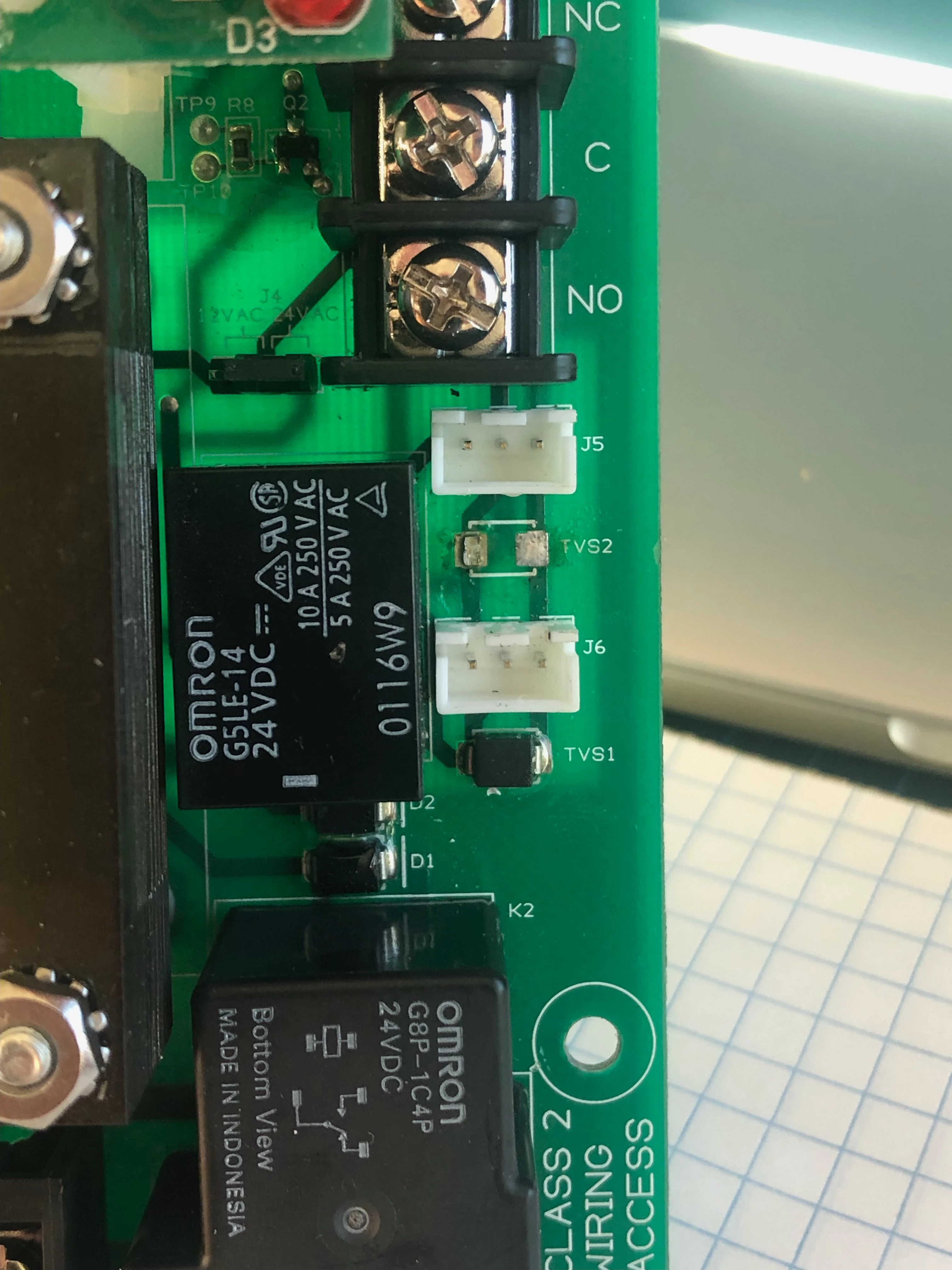

The coding appears to be C3J C616, but it is a bit unclear. The package is a surface mount approx. 3mm x 5mm. The TVS is used in a 24V pool actuator valve control system.

This topic has been closed for replies.
Best answer by Tesla DeLorean

C616 is likely a production code

CBJ is SMBJ40CA

https://www.st.com/resource/en/datasheet/smbj.pdf

1 reply

Tesla DeLorean
Tesla DeLoreanBest answer
Guru
February 27, 2022

C616 is likely a production code

CBJ is SMBJ40CA

https://www.st.com/resource/en/datasheet/smbj.pdf

Tips, Buy me a coffee, or three.. PayPal VenmoUp vote any posts that you find helpful, it shows what's working..
PeterB1
PeterB1Author
Associate
February 28, 2022

Thanks!
