L4931 Output Capacitor

  • July 11, 2025
  • 1 reply
  • 192 views

A design I am debugging is utilizing Y5V dielectric capacitors on the input and output of the L4931. There is a 2.2uF capacitor directly at the output and another 2.2uF capacitor on the other side of an ~4 Ohm resistor that analog supplies are used off of.

Are there any concerns over temperature for using this dielectric type with this LDO? I know that Y5V tends to have a pretty variable capacitance over the operating temperature range of this LDO. I wanted to check in and see if there is any margin on the LDO for the stability capacitor requirement that would accommodate this capacitor dielectric type.

I also wanted to check in and see if there are any suggestions for performing a test for verifying if excessive transients are present due to a potential lapse in stability over temperature of the circuit.

1 reply

MHoll.2
Senior III
July 12, 2025

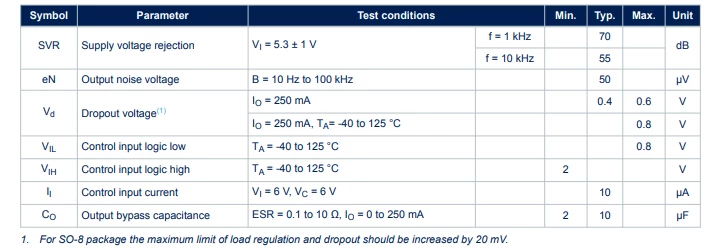

That depends on the temperature range you have to cover. But Yes 2.2 uF Y5V is probably to low, the Datasheets gives 2 uF as minimal output capacitance:

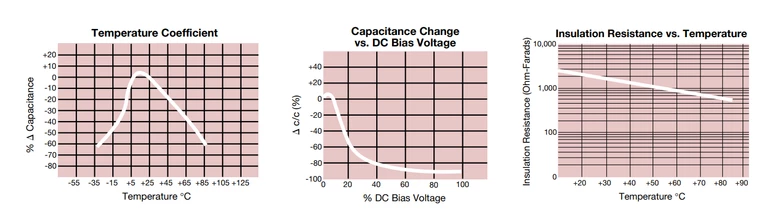

You have to take in consideration not only the temperature but also the DC Bias Voltage!
