L4981BD output reference voltage

[mkarami]

In the application note for one of ST parts (L4981BD) and it is mentioned that the output voltage can be calculated from the following formula:

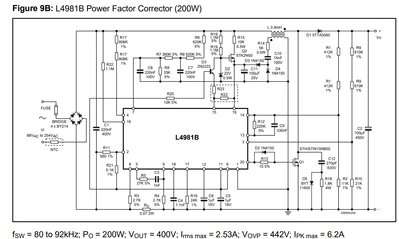

But in the datasheet, in Figure 9B, the given output voltage does not match with this formula:



Does anyone know if the feedback resistor from pin 13 to 14 affect the output voltage or not?





[Jacob WOODRUFF]

Hi All,



This question has been escalated to our online support system for direct support.



Regards,
Jake
ST Support
