Looking for datasheet on diode

[ATS-Byron]

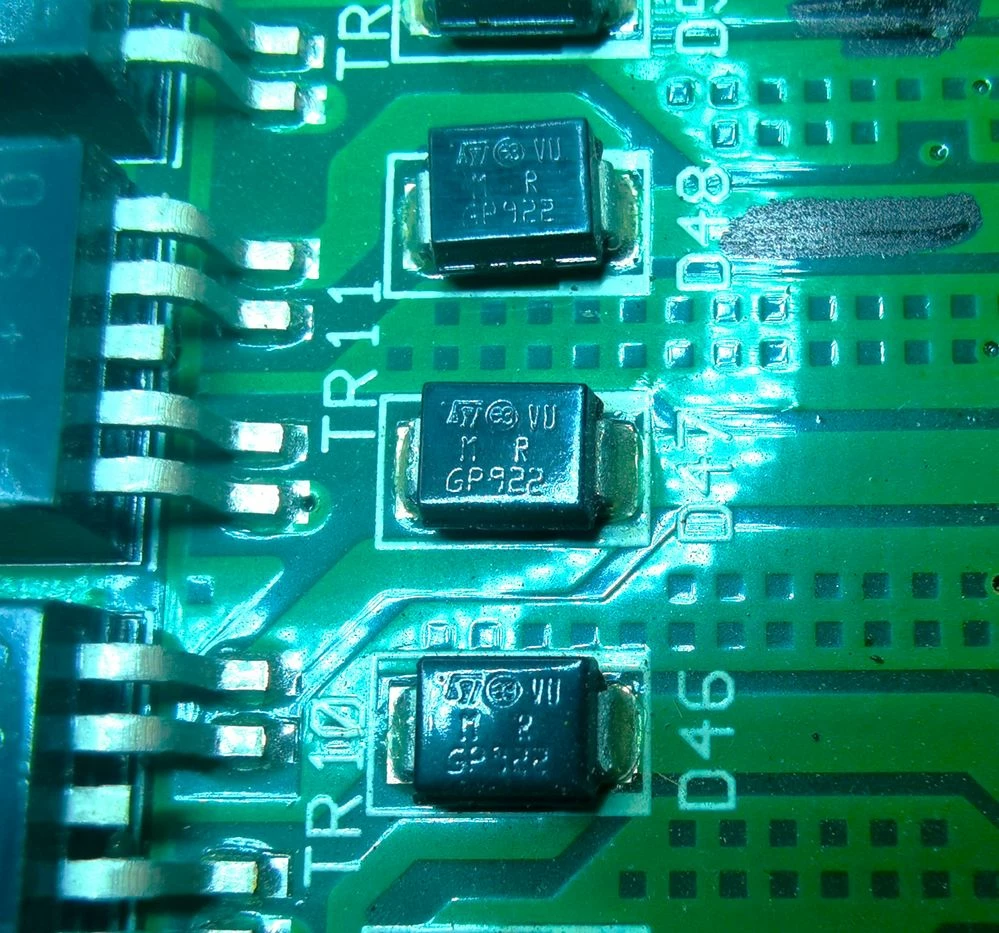

From what I can read on this diode it is from ST for sure, and it says VU beside the logo, the next line is M R, and the last line is GP922.



Any help would be appreciated.

[Peter BENSCH]

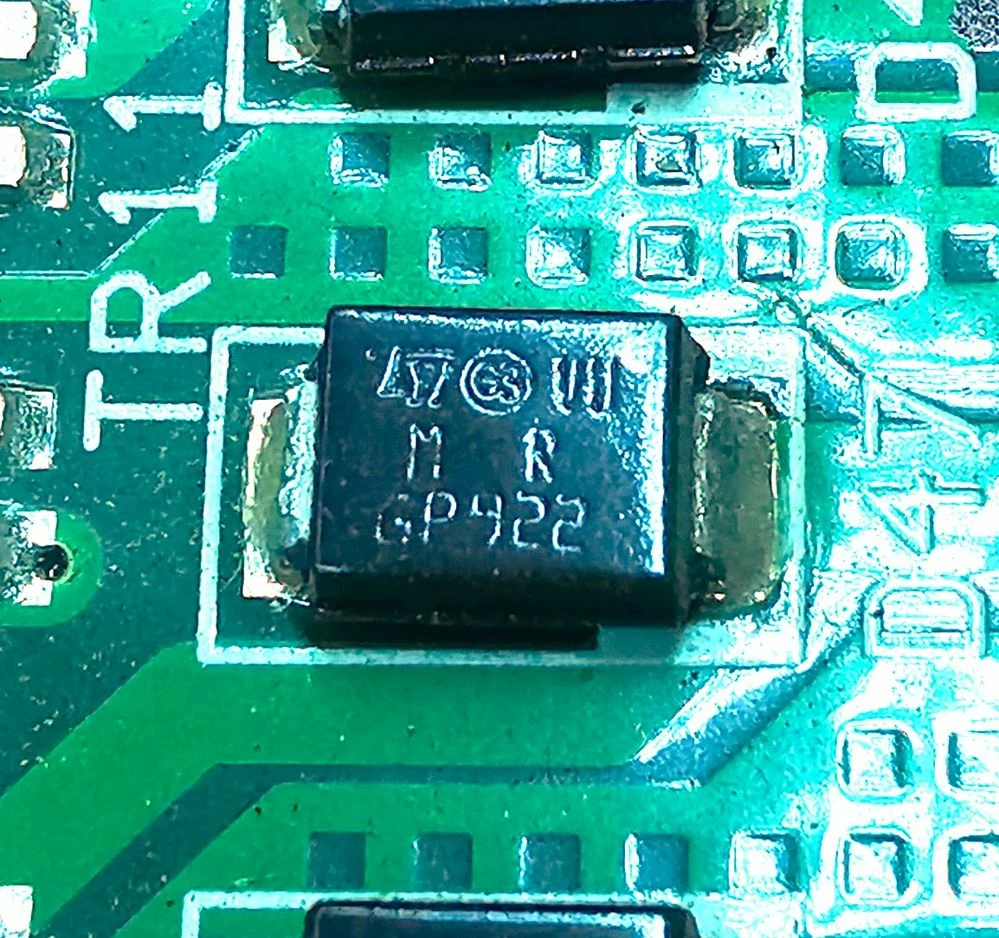

Thank you for the legible photo!

The marking MR stands for the SM6T30CA, a bidirectional 600W, 25.6V TVS in SMB package.

Hope that helps?

Good luck!
/Peter

[Agnortan83]

Hi, I have diode with logo ST with code GP 113

Which's diode ?

Any help would be appreciated.

[Tesla DeLorean]

Perhaps provide a picture in context. Have it be large, clear and in focus..

GP113 is a production location / date code, it is not product ID marking.

The product ID is typically a two or three letter code. Usually alpha.

[Agnortan83]

[Tesla DeLorean]

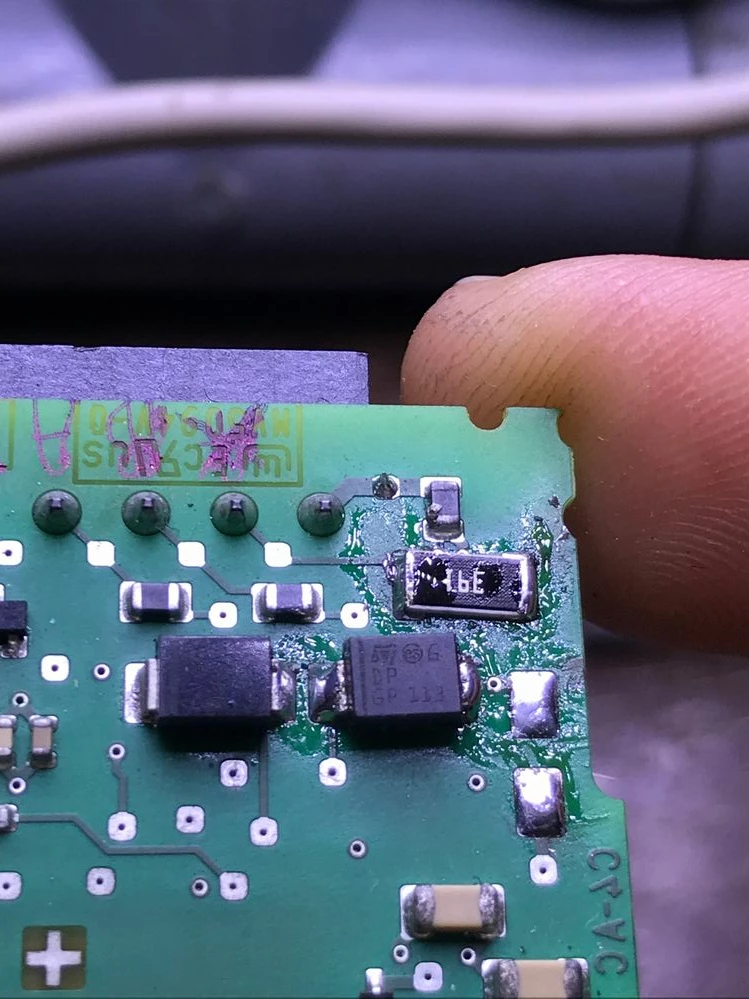

DP -> SM6T10A

https://www.st.com/resource/en/datasheet/sm6t100a.pdf#page=10

Looks like it's already been replaced, the original part is the one on the left, is the marking on that legible?



[Agnortan83]

Yes, it's 6V8A 18A

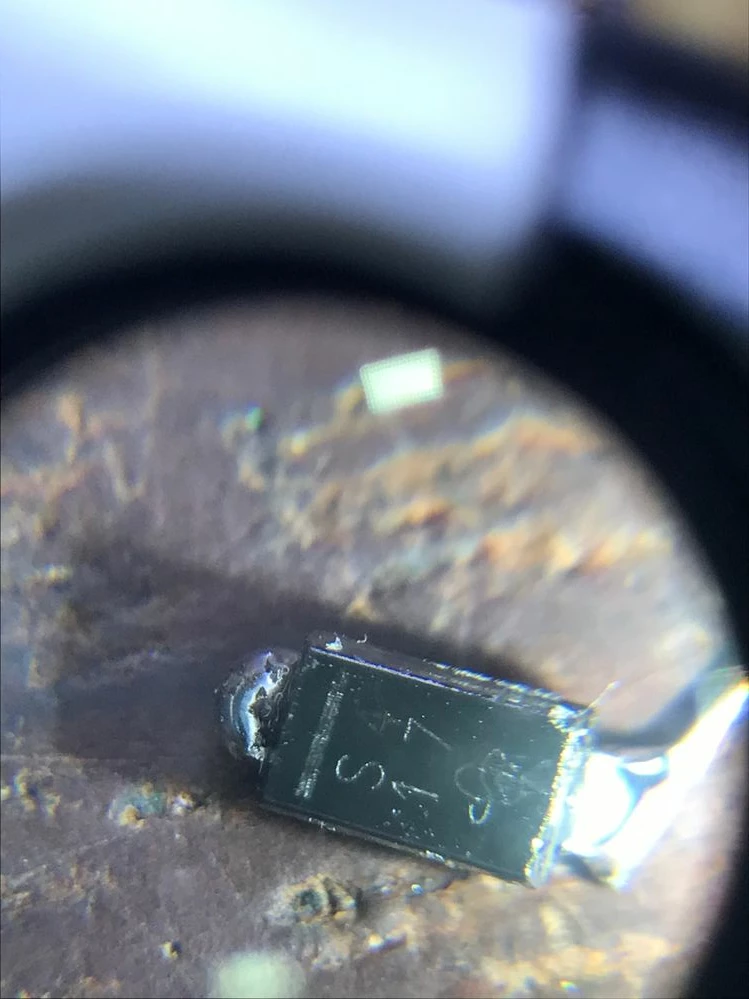

Anyway i have diode i don't know, S417, Thank You.

Thank You.

[Tesla DeLorean]

Looks to be a Vishay 40V 3A  SS34-E3/57T

https://www.vishay.com/docs/88751/ss32.pdf
