SRK2000A: IC skips the gate pulses.

Hi,

We are working on LLC converter Vout=12V; Pout=100W.

We are using SRK2000A IC at the output.

We are facing some issues related to it.

The IC behaves as expected while driving the load from 30% to 100%.

But when we start reducing the load below 30% the IC starts skipping the gate pulses.

Primary side we dont see burst mode operation.

Attaching the waveforms for reference:

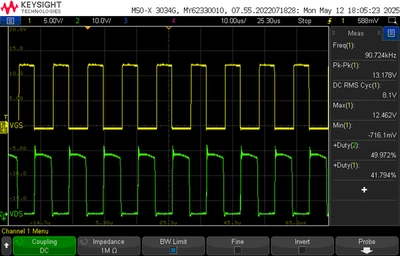

1. Full Load VGS and VDS waveforms; working as expected.

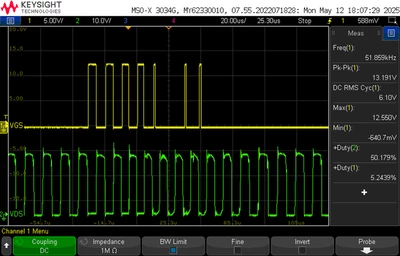

2. <30% load VGS and VDS waveforms; having issue.
