Steval-L99615C Discovery Kit

[KWarr.1]



When testing discovery kit. With Demo 1 binary file FW of the STSW-L9961BMS. Tera Term serial monitor outputs random characters. Using Speed 9600, Data 8 bit, Parity none, Stop bit 1 bit. Tried different computer. Tried different settings. Same result. Display nothing like VT100 User Interface.

[Ignazio Testoni]

Hello,

sorry for the delayed answer.

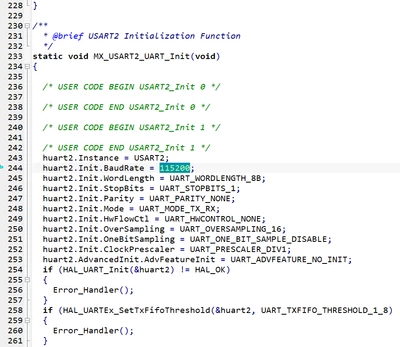

Did you try to set UART baud rate at 115200 ?

It should be the right one.

Regards.

Ignazio





[KWarr.1]

When I select 115200 baudrate, I get a flash error massage NO DEVICE FOUND from Tera Term VT.

[NicolaOrmando]

Dear User,

getting that kind of (error) message means that the communication with the system is well established, but the device is not powered: please, check that the L99615C has a proper supply (i. e., greater than 14V, even 20V).

Best Regards.

Nicola.

[NicolaOrmando]

Ciao KWarr.1,

it seems that the problem is due to a wrong UART baudrate setting.

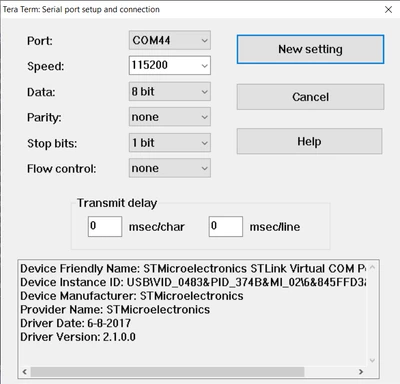

Please, cross check the suggested values, so as reported within the source code and the snapshot.

Best Regards,

Nicola.
