[Chetna]

Hi,

Can I get the schematic of STEVAL-USBSTICK which is part of the set STEVAL-PMIC1K1 and acts as an USB-I2C interface, to get the details of the CN1 connector & the other pin details.



[Peter BENSCH]

Welcome @Chetna, to the community!

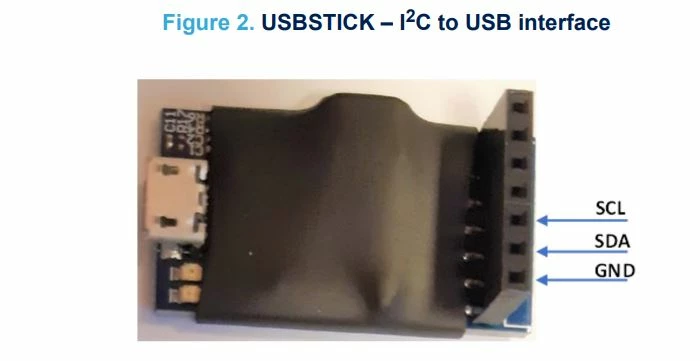

The STEVAL-USBSTICK is a proprietary tool, so schematics and other documents are not publicly available. It only works as a simple USB-I2C interface, as also mentioned in AN5440.

Hope that answers your question?

Regards
/Peter
