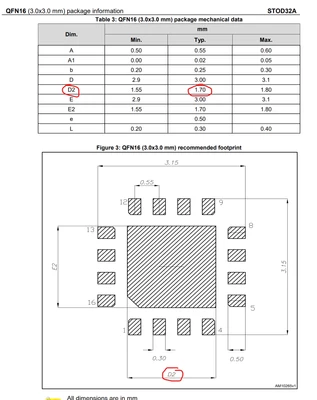

STOD32A has wrong dimension in the datasheet

[Dzor]

D2/E2 should be 1.95, not 1.7.

3x0.55+0.3=1.95

https://www.st.com/en/power-management/stod32a.html

[Dzor]

Actually, D2 and E2 should simply be not referenced on the drawing.



0.55 should be 0.5, per `e` dimension.

So now 3x0.5+0.3=1.8mm



It should be numerically written 1.80 and then everything starts to make sense.

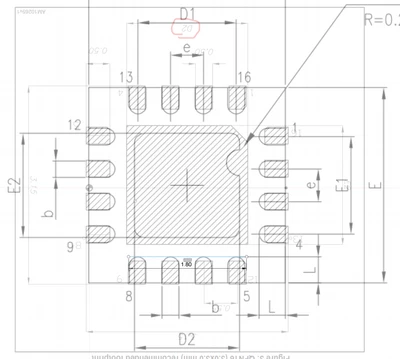

Here is an overlay:

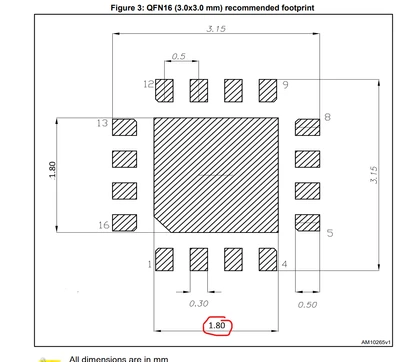

And here is corrected drawing:
