STWBC2-HP Evalobard

[simonh]

Hi All,

I have developed my own Evalboard for the STWBC2-HP based on the STEVAL-WBC2TX50. Now i have flashed the stdes-50w2cwbc_FW_v1.0.0.0.hex firmware to the board and the Software shows the following. The power transfer does not work. Do you have any suggestions why that is so?



Thank You





[willzhou]

Hi Simon

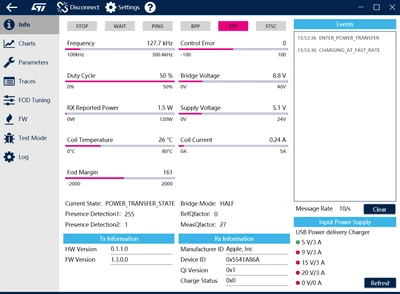

i think you use wrong hex file, correct version is 1.3.0.0, please use this attach file.

[simonh]

Ok thank you.

But with this hex file loaded, it is nearly impossible to connect to the IC via UART. The most time this error occurs when connecting:



Is it possible to initate the Calibration via SWD interface with the STM32 Cubeprogrammer?



After a few times trying to connect it worked, but now i get the following message: SCHEDULER-MSG-ERROR

The error log is attached.



[willzhou]

Hi

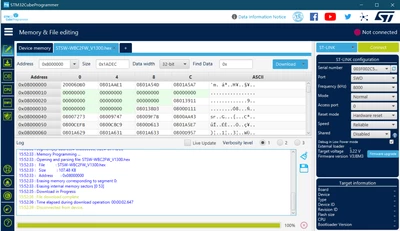

Please erase all and download again, i have retest and do not have connect issues.







[孙尚香]

Hi there,

I saw your post about flashing your device with the stdes-50w2cwbc_FW_v1.0.0.0.hex firmware. I'm looking for the same firmware myself. Could you please let me know where you found it? If you happen to have a backup, would you be willing to share a copy with me?

Thanks a lot!
