Bring-up NFC06A1 on NUCLEO-F446RE

[SRauh.1]

Hello Community,

I am new in the topic of nfc and programming of nucleo boards.

So, the questions can seem to be very stubid ;)

For a project I try to bring up a X-Nucleo-NFC06A1 on top of a Nucleo -F446RE.

On web (ST,...) I found code examples for different nucleo boards.

If I import the supported examplary projects into the Cube IDE, everything works quite well...but with the wrong Nucleo board.

I can't find any guidline to bring up the NFC extension board with the F446RE.

And also the NFC06A1 cannot be imported via Devcie config Tool (software packets).

So my (stupid) questions:

• Is there a guidline / video / ... available which describes the steps to port the existing examples to the f446re
• What files of the Middleware/Driver should be included to get the NFC06A1 running in from a default F446RE project
• How should the f446re be configured (SPI,...)

Thanks for every helpfull comment,

Sebastian

[Brian TIDAL]

Hi Sebastian and welcome to ST community.

First of all, I would recommend to use the ST25 Embedded NFC library that is the most up to date package. This package is build on top of NUCLEO-L476RG but it can be ported on other Nucleo board such as the NUCLEO-F446RE. This has to be done "half" manually.

I would suggest you use STM32CubeMX to configure the SPI and the various GPIOs on your NUCLEO-F446RE:

• SPI (Full duplex master, Motorola format, 8 bits, MSB first, HW NSS disable - Software NSS, CPOL Low, CPHA 2 edges baud rate up to 5MBits/s
• GPIO
  • IRQ_3916 external Interrupt mode with rising edge trigger detection
  • SPI_CS: output push pull
  • LEDs: output push pull
• See UM2615 (Getting started with the NFC card reader expansion board based on ST25R3916 for STM32 and STM8 Nucleos) for the pin assignment

Then you just need to copy the /* USER */ parts of the main.c (and add st25r3916Isr() in EXTI0_IRQHandler) and update the platform.h with the pin mapping

Last step

• add the various RFAL files in your project
• update the main.c to add the calls to demoIni and demoCycle
• update the include path and the defines (add USE_LOGGER and ST25R3916) in the compiler options

I've attached the NUCLEO-L476RG ioc file (STM32CubeMX) for reference.

Rgds

BT

[SRauh.1]

Hello Brian,

thanks for your answer.

I followed your instructions to port one of the basic examples to the F446RE.

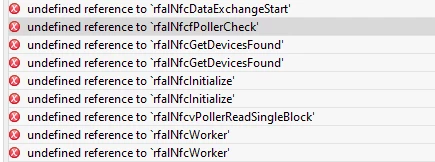

It works up to the point, that some "undefined reference to" errors occur.



I already checked the forum to solve the problem, but without success.

It seems to be a linker problem...but to which library path i have to link?

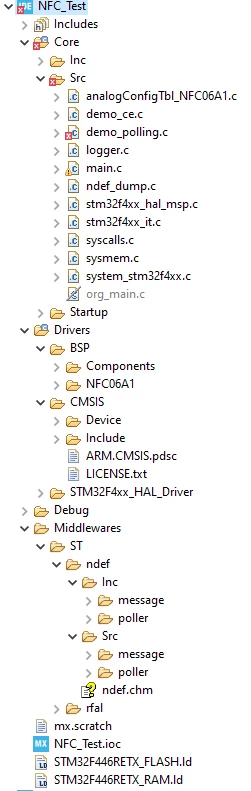

The project structure is



Do you have any further information which helps to get the system running?

Regards,

Sebastian

[Ulysses HERNIOSUS]

Hi Sebastian,

the mentioned functions are defined in rfal_nfc.c. Should be under the last directory of the shown "Middlewares".

BR, Ulysses

[Brian TIDAL]

Hi Sebastian,

there is no specific linker option or lib/libpathc/etc.. Make sure rfal_nfc.c is compiled and that rfal_nfc.o is in the list of objects being linked by the linker.

Rgds

BT
