is there any sample for X-NUCLEO-NFC08A1 to be used with NUCLEO-U083RC board

[Mihaita Ivascu]

Hello,



      I would like if anyone had to use X-NUCLEO-NFC08A1 expansion boards with NUCLEO-U083RC and could reuse successfully the examples for NFC08A1? I see there are a few, but for other MCUs



Thanks,

      Mihai



[Brian TIDAL]

Hi,

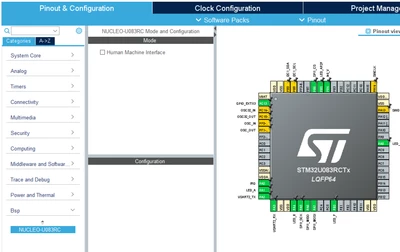

when using X-CUBE-NFC6, one can generate the polling demo and the NDEF demo for any NUCLEO-64 board. I would recommend to use this X-CUBE-NFC6 package and generate for NUCLEO-U083RC with STM32CubeMX.

Rgds

BT

[Mihaita Ivascu]

Hello,



    Thanks for the prompt answer.

    I have downloaded X-CUBE-NFC6 package and checked the contents.

    I did not figure out how to generate ndef for NUCLEO-U083RC





Thanks,

     Mihai

[Brian TIDAL]

Hi Mihai,

see STMicroelectronics.X-CUBE-NFC6_GettingStarted.pdf inside the STM32Cube\Repository\Packs\STMicroelectronics\X-CUBE-NFC6\3.1.0\Documentation folder. This provides step by step instructions.

Rgds

BT

[Mihaita Ivascu]

Yes I was able to generate it already. This is really helpful feature. thanks.

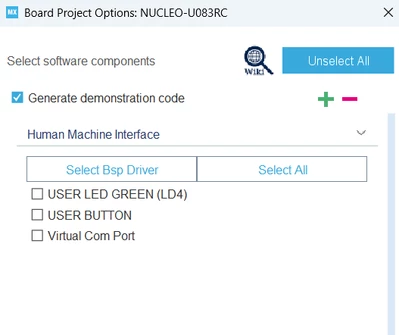

But although I select application it does not generate code for application(ndef demo for example). but it does so for BSP, drivers and all level.



Thanks,

    Mihai



[Brian TIDAL]

Hi,

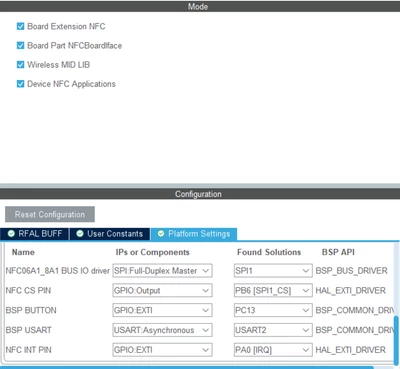

make sure to properly configure the components:

and then:

This should generate the NDEF application.

Rgds

BT

[Mihaita Ivascu]

Hello BT,



    Thanks a lot for the *.ioc . It works without issues. So I must have been done something wrong when configuring the ioc on myself on CubeMX.



    I run the example and get on console:

Not sure if it's expected.



Thanks,

     Mihai



[Brian TIDAL]

Well done!

The tag being used seems to be not NDEF formatted (either not supporting NDEF or requiring some proprietary steps to enable NDEF support). I would suggest to use NDEF ready tags such as ST25TA (T4T), ST25TN (T2T) or ST25TV (T5T). See ST25-TAG-BAG-UT1 or ST25-TAG-BAG-UI1 for samples.

Rgds

BT

[Mihaita Ivascu]

Hello BT,



      The tags you mentioned are not ISO15693 compatible, I understood.

      I need to use ISO15693 compatible tags and that support NDEF if you aware of any part.



Thanks,

      Mihai
