ST25 Tag Editor does not support ST25DVxxKC variants

[nhedler]

The KC chips made breaking changes to some configuration registers, but v2.3.1 of the ST25 Tag Editor has no option for the KC variant, so some configuration registers are read/written incorrectly.

[Brian TIDAL]

Hi,

I guess your post refers to the ST25 Tag Editor utility of the ST25R3911B Discovery GUI for the ST25R3911B-DISCO.

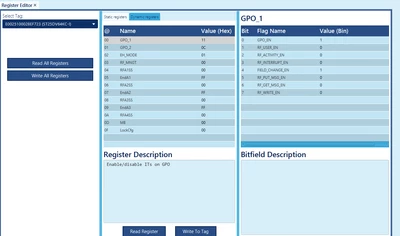

For the support of ST25TVxxxKC devices, I would recommend to use the ST25PC-NFC application. It can be used with various ST discovery/evaluation boards (in particular ST25R3911B-DISCO) and it demonstrates RF communication with all ST25 tags (including ST25TVxxxKC devices). Easy access to registers of ST25TVxxxKC devices is also provided:

Rgds

BT
