ST25R3916-AQET - How to read a text file

[Geminus_Leonem]

Good Afternoon,

I am currently trying to read a text file from an NFC tag from an ST25R3916-AQET NFC reader connected to an STM32 microcontroller.

I have tried to make use of the example case offered by X-NUCLEO-NFC08A1 but it only shows how to detect a tag, not how to read from it. Is there any documentation or case examples that can help or guide me to my objective?



[Ulysses HERNIOSUS]

Hi Geminus_Leonem,

what you will need to typically use is NDEF. The X-CUBE-NFC6 should contain two applications, one of them showing how to read (and write) NDEF content.

More up to date is the NDEF demo in ST25 NFC lib.

BR, Ulysses

[Geminus_Leonem]

Hi Ulysses,

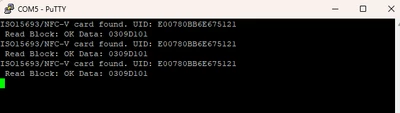

That is indeed the code I attempted to mention in my initial post. It reads the data block and UID from the tag but that's it.



I am trying to figure out how to read the text itself.

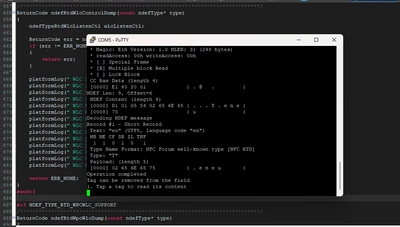

I know that there is a "ndefRtdTextDump" function in the ndef_dump.c but I have yet to figure out how to call it and make use of it.

I haven't found any directions or help on the files so, again, any help regarding this would be appreciated.

[Ulysses HERNIOSUS]

Hi Geminus_Leonem,

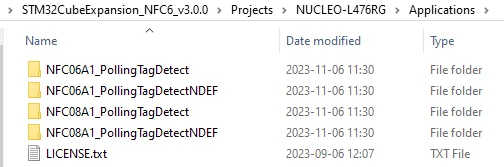

your output seems to be from the non-NDEF project. Please see the folder:

If the tag is properly formatted and has an NDEF then the PollingTagDetectNDEF projects should read the NDEF and display it.

BR, Ulysses

[Geminus_Leonem]

Ahah! Just figured out the issue I think!

Not quite sure what it was, to be honest... but it seems to be working now.

Still, I very much appreciate the assistance and apologize for bothering you with this Ulysses.
