Unable to write Password for AREA1 on a fresh ST25TV02KC Tag using RFAL

[itanuj_KI]

Hello ST Community,



I am encountering a persistent issue while attempting to program a new password for the user memory in AREA1 of an ST25TVxxXC NFC tag using an ST25R200 reader and the RFAL library.



I have followed below procedures for setting the password:

1. Get a 2-byte Random Number from the tag using rfalST25xVPollerGetRandomNumber() api.
2. XOR the desired 64-bit password with the obtained Random Number, as per table 30 of ST25TV02KC datasheet
3. Use the PresentPassword command to enter secure session mode with default password {0,0,0,0,0,0,0,0} using rfalST25xVPollerPresentPassword() api.
4. Use the WritePassword command to set the new password using rfalST25xVPollerWritePassword() api.

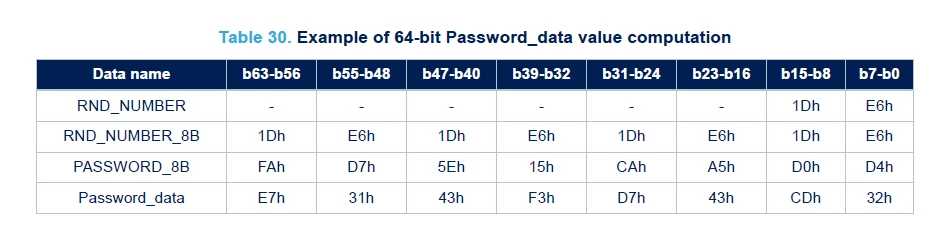

I have written a local function to perform XOR operation and confirmed that the XORed output matches as per below table of ST25TV02KC datasheet:



Below is the code snippet for the same:

platformLog("\r\nUSE CASE : Writing password.\r\n");

uint8_t rnd_num[ 1 + 2 + RFAL_CRC_LEN ]; /* Response Flags + RND_NUMBER(2) + CRC */

/* Read UTC_EN from System Configuration Register @(FID=02h, PID=00h) */
err = rfalST25xVPollerGetRandomNumber(reqFlag, uid, rnd_num, sizeof(rnd_num), &rcvLen);
platformLog("Received Random Number : %s %s\r\n", (err != RFAL_ERR_NONE) ? "FAIL" : "OK Data:", (err != RFAL_ERR_NONE) ? "" : hex2Str( &rnd_num[1], rcvLen - 1));

uint8_t default_pwd[8] = {0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0, 0x0}; //64-Bit password
uint8_t pwd[8] = {0x11, 0x22, 0x33, 0x44, 0x55, 0x66, 0x77, 0x88}; //64-Bit password
uint8_t coded_pwd[8];

uint16_t xor_val = (rnd_num[1] << | rnd_num[2];

/* 2.Make the password and Random Number XOR. */
get_xored_pwd(pwd, PWD_64_BIT, xor_val, coded_pwd);

platformLog("Raw Password : %s %s\r\n", (err != RFAL_ERR_NONE) ? "FAIL" : "OK Data:", (err != RFAL_ERR_NONE) ? "" : hex2Str( &pwd[0], 8));
platformLog("Coded Password : %s %s\r\n", (err != RFAL_ERR_NONE) ? "FAIL" : "OK Data:", (err != RFAL_ERR_NONE) ? "" : hex2Str( &coded_pwd[0], 8));

/* 3.Use the Present Password function to enter secure session mode. */
err = rfalST25xVPollerPresentPassword( reqFlag, uid, 0x01, default_pwd, 8);
platformLog("Opening Secured Session : %s (Error Code: %d)\r\n", (err != RFAL_ERR_NONE) ? "FAIL" : "OK Data:", err);

/* 4.Start writing the password that you want */
err = rfalST25xVPollerWritePassword( reqFlag, uid, 0x01, coded_pwd, 8);
platformLog("Writing Password : %s (Error Code: %d) %s\r\n", (err != RFAL_ERR_NONE) ? "FAIL" : "OK Data:", err, (err != RFAL_ERR_NONE) ? "" : hex2Str( &coded_pwd[0], 8));

However, I am unable to successfully enter the secure session using present password api, consistently receiving RFAL_ERR_REQUEST (invalid request or requested function can't be executed at the moment).

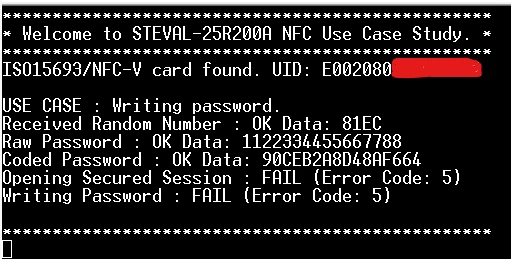

Below is the debug prints on Tera Term terminal:





















Any guidance, insights into common pitfalls, or suggestions for further debugging would be greatly appreciated.



Thank you for your time and assistance.



Regards,

Tanuj

[Brian TIDAL]





Hi

Line 13 seems erroneous.

Line 22: clear password cannot be used to open the security session.

Please see the following code example for presenting password:

ReturnCode ST25TAGS_TVC_OpenSecuritySession(const uint8_t * uid, ST25TAG_TVC_SecuritySession_t sessionType,
 const uint8_t * pPassword)
{
 uint8_t pwdNumber;
 uint8_t pwdLengthInBytes = 4;
 ReturnCode errCode;
 uint8_t rxBuf[ 1 + 2 + 2 ]; /* Flags + Random Number Data + CRC */;
 uint16_t rcvLen;
 uint8_t updatedPassword[8];

 switch (sessionType)
 {
 case CONFIGURATION_SECURITY_SESSION:
 pwdNumber = 0;
 break;
 case USER_AREA1_SECURITY_SESSION:
 pwdNumber = 1;
 break;
 case USER_AREA2_SECURITY_SESSION:
 pwdNumber = 2;
 break;
 case SINGLE_USER_AREA_SECURITY_SESSION:
 pwdLengthInBytes = 8;
 pwdNumber = 1;
 break;
 case UNTRACEABLE_SECURITY_SESSION:
 pwdNumber = 3;
 break;
 default:
 return RFAL_ERR_PARAM;
 }

 // Encrypt password
 // 1. Get Random Number
 errCode = rfalST25xVPollerGetRandomNumber( ST25TAGS_TVC_REQ_FLAG, uid, rxBuf, sizeof(rxBuf), &rcvLen );

 if ( errCode == RFAL_ERR_NONE )
 {
 // 2. XOR random number with given password located in rxBuf[1] and rxBuf[2]
 for (uint8_t i = 0; i < (pwdLengthInBytes * 2); i++)
 {
 updatedPassword[i] = pPassword[i] ^ rxBuf[2 - (i + 1) % 2];
 }

 // Present password
 errCode = rfalST25xVPollerPresentPassword( ST25TAGS_TVC_REQ_FLAG, uid,
 pwdNumber, updatedPassword, pwdLengthInBytes);
 }

 // Same ReturnCode definitions used in st_errno.h of RFAL
 return errCode;
}

Rgds

BT

[itanuj_KI]

Hello Brian,

Thank you for the help.



Line 22: clear password cannot be used to open the security session.

---

I didn't get you, what are you trying to convey? I haven't used any clear password api in the shared code snippet. Could you help me understand?



ReturnCode ST25TAGS_TVC_OpenSecuritySession(const uint8_t * uid, ST25TAG_TVC_SecuritySession_t sessionType,
 const uint8_t * pPassword)

---

I have created a sample application using the X-CUBE-NFC10 package, but I do not see the above function.
However, I have reviewed its implementation and incorporated it into my application, but this did not work either.

Below is the code snippet:

	uint8_t pwdNumber;
	uint8_t pwdLengthInBytes = 4;
	ReturnCode errCode;
	uint8_t rxBuf[ 1 + 2 + 2 ]; /* Flags + Random Number Data + CRC */;
	uint16_t rcvLen;
	uint8_t updatedPassword[8];
	uint8_t pPassword[8] = {0x11, 0x22, 0x33, 0x44, 0x55, 0x66, 0x77, 0x88};	//64-Bit password

	// 1. Get Random Number
	errCode = rfalST25xVPollerGetRandomNumber( RFAL_NFCV_REQ_FLAG_DEFAULT, uid, rxBuf, sizeof(rxBuf), &rcvLen );
	platformLog("Received Random Number : %s %s\r\n", (errCode != RFAL_ERR_NONE) ? "FAIL" : "OK Data:", (errCode != RFAL_ERR_NONE) ? "" : hex2Str( &rxBuf[1], rcvLen - 1));

	pwdNumber = 1;	// USER_AREA1_SECURITY_SESSION:

	// 2. XOR random number with given password located in rxBuf[1] and rxBuf[2]
	for (uint8_t i = 0; i < (pwdLengthInBytes * 2); i++)
	{
		updatedPassword[i] = pPassword[i] ^ rxBuf[2 - (i + 1) % 2];
	}

	platformLog("Raw Password : %s %s\r\n", (errCode != RFAL_ERR_NONE) ? "FAIL" : "OK Data:", (errCode != RFAL_ERR_NONE) ? "" : hex2Str( &pPassword[0], 8));
	platformLog("Updated Password : %s %s\r\n", (errCode != RFAL_ERR_NONE) ? "FAIL" : "OK Data:", (errCode != RFAL_ERR_NONE) ? "" : hex2Str( &updatedPassword[0], 8));

	// Present password
	errCode = rfalST25xVPollerPresentPassword( RFAL_NFCV_REQ_FLAG_DEFAULT, uid, pwdNumber, updatedPassword, pwdLengthInBytes);
	platformLog("Opening Secured Session : %s (Error Code: %d)\r\n", (errCode != RFAL_ERR_NONE) ? "FAIL" : "OK Data:", errCode);

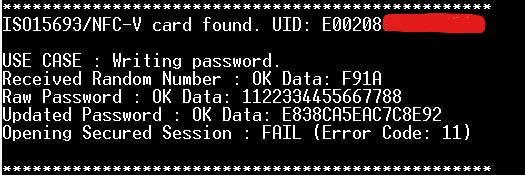

and below is the debug prints captured on tera term terminal:











Please let me know if i missed anything.

I would like to confirm my understanding: In order to set a new password for AREA1 on a fresh tag, we must first open the USER_AREA1_SECURITY_SESSION using the default password, after which the new password can be written.

Regards,

Tanuj



[Brian TIDAL]

Hi Tanuj,

if a "fresh ST25TV02KC" is being used, the password factory value is 0000000000000000 and likely not 1122334455667788. See Table 19 in ST25TV02KC datasheet for the factory value. Presenting a 1122334455667788 XOR'ed password instead of a 0000000000000000 XOR'ed password will not work. Presenting a non-XOR'ed password (as in line 22 of your initial code snipped: default_pwd is a non-XOR'ed password) will not work as well.

See also section 5.1.2 Password management and table 26 regarding the update of PWD_A1.

Just XOR the factory password and present the XOR'ed value.

Rgds

BT

[Brian TIDAL]

Hi Tanuj,

in case of PWD_A1, pwdLengthInBytes should be 8 not 4 (this is 4 in case of PWD_CFG) and line 17 should be replaced by:

	for (uint8_t i = 0; i < pwdLengthInBytes; i++)

Rgds

BT

[itanuj_KI]

Hello Brian,

Apologies for the delayed response. Thanks for the fix—it worked.

I am now able to set and modify the password.

Regards,

Tanuj
