B3 on the NUCLEO-C092RC is not mentioned on the UM3353

[Issamos]

Hello ST Community team,

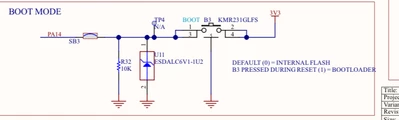

on the MB2046 schematic, there is a button called B3 or Boot mode pin:

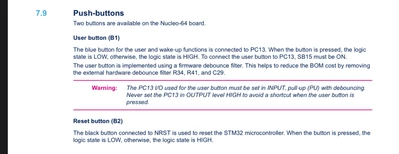

But the UM3353 (chapter 7.9) mention only B1 and B2:

Could you please correct this on the coming doc revisions.

Best Regards.

II

[Imen.D]

Hello @Issamos

Thank you for having reported this.

You are right ! The function for B3 Boot mode is missing description in UM3353.

An internal ticket ID 220601 is submitted in order to correct this.
(PS: Ticket ID 220601 is an internal tracking number and is not accessible or usable by customers).

[Imen.D]

Hi @Issamos

The UM3353 is now updated and published with correction.

Thank you for your contributions.
