Clarification on ST-LINK/V2 VTref (VAPP) Pin Behavior
Dear STMicroelectronics Support Team,
I am working with two ST-LINK/V2 debuggers and have observed a difference in the VTref (VAPP) signal location on the 20-pin connector.
I would like to understand whether this is expected behavior.
Details of the debuggers:
1. ST-LINK/V2 marked: B2025 16
2. ST-LINK/V2 marked: A2017 10
Used board to flash :
BLUENRG-M2SP
Used flasher tool :
RF-Flasher utility v4.5.0
Observation:

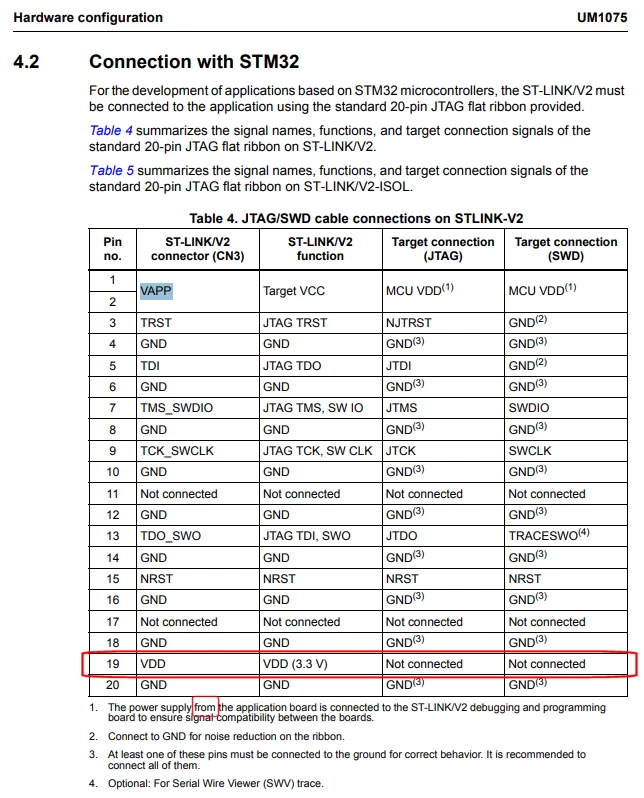

* In the B2025 16 debugger, the target voltage (~3.3 V) is measured on Pin 1 of the 20-pin connector.
* In the A2017 10 debugger, the target voltage (~3.3 V) is measured on Pin 19 of the 20-pin connector.
Both debuggers are being used under similar conditions with the same target hardware.
Could you please clarify:
1. Whether such variation in VTref (VAPP) pin location is expected across different ST-LINK/V2 units?
2. If there are any known hardware variations or revisions related to this behavior?
3. Any guidance to ensure correct usage in this scenario?
We want to ensure safe and reliable operation in our setup.
Looking forward to your clarification.
Best regards,
Selvakumar G
