Connecting issue Nucleo-H7A3ZI - Q

Forum|Forum|1 year ago
August 28, 2024
4 replies
3826 views

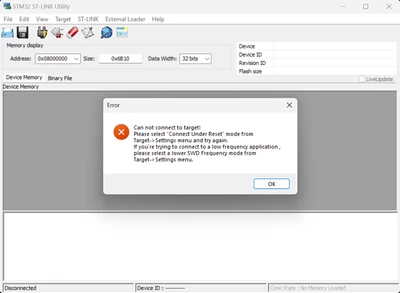

Hello I can't able to connect my NUCLEO - H7A3ZI -Q. Its showing error while commenting.

Please help me with solving this issue.

Best answer by mƎALLEm

Visually, I don't see issue on the board according to the images you shared.

For Solution 1, please check again by following this article:

https://community.st.com/t5/stm32-mcus/how-to-unbrick-an-stm32h7-after-setting-the-wrong-power-mode/ta-p/49691

BOOT_CM7_ADD1 is not accessible as it's located in option bytes and you couldn't connect to the board with STM32CubeProgrammer to check.

STTwo-32

Technical Moderator

Hello @Durgasish and welcome to the ST Community :smiling_face_with_smiling_eyes:.

the STM32 ST-LINK utility is now obsolete. Could you please try using STM32CubeProgrammer. Also, don't forget to use a data and not a charging cable.

Best Regards.

STTwo-32

D

DurgasishAuthor

Associate II

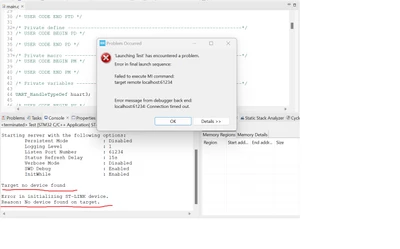

Hello @STTwo-32 if I'm using in STM32Cube IDE also I'm getting similar issue.

STTwo-32

Technical Moderator

Could you try to perform a mass erase of the board using CubeProgrammer. Then, restart CubeIDE and retry to connect.

Also, make sure that your ST-Link firmware is upgraded, check the jumpers, SWD pins status, try configuring the "Connect under reset" mode and dont forget to check your power supply and try to change your USB cable (ensure that you are using a data cable not a charging one).

Best Regards

STTwo-32

mƎALLEm

Technical Moderator

Are you sure the board has not used or/and modified by someone else ? Do you have another board and connect with STM32CubeProgrammer?

"To give better visibility on the answered topics, please click on ""Accept as Solution"" on the reply which solved your issue or answered your question."

D

DurgasishAuthor

Associate II

No It is not modified by anyone. And yes I have checked it with another NUCLEO H743ZI its working fine for that board.

Andrew Neil

Super User

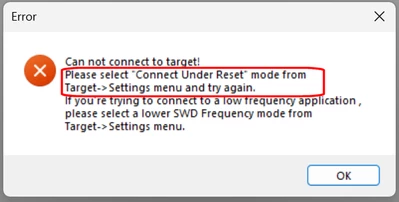

@Durgasish wrote:

So did you do that?

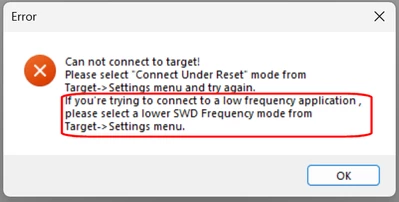

Also:

Does that apply to you situation? If so, did you do it?

A complex system that works is invariably found to have evolved from a simple system that worked.A complex system designed from scratch never works and cannot be patched up to make it work.
