Dev board for STM32L552RET6TR

  • February 5, 2025
  • 3 replies
  • 1153 views

need to know dev board for the STM32L552RET6TR. Also what is the specific part number used on this dev board.

Best answer by mƎALLEm

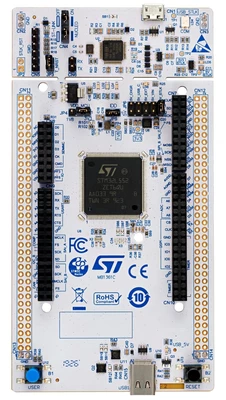

Either: Nucleo board NUCLEO-L552ZE-Q as a basic board:

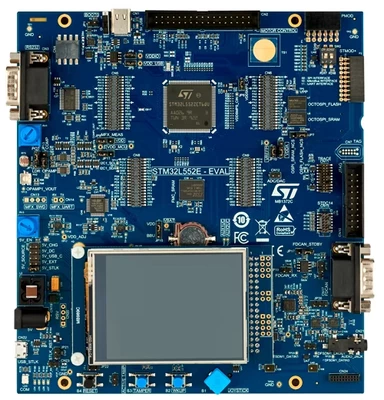

Or the evaluation board STM32L552E-EV

with a superset feature:


For more details refer to their respective links.

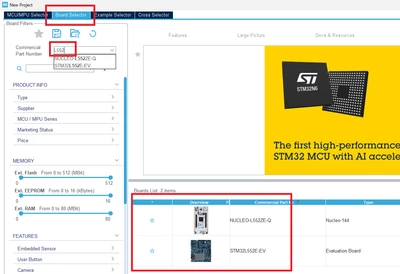

You can also use STM32CubeMx for fast search of the available boards to your device:




3 replies

Andrew Neil
Andrew Neil
Super User
February 5, 2025

As always, go to the Product Page, then look on the 'Tools & Software' tab:

https://www.st.com/en/microcontrollers-microprocessors/stm32l552re.html#tools-software

A complex system that works is invariably found to have evolved from a simple system that worked.A complex system designed from scratch never works and cannot be patched up to make it work.
Tesla DeLorean
Tesla DeLorean
Guru
February 5, 2025

Not every part has a development board

Perhaps use the NUCLEO as a proxy

https://www.st.com/en/evaluation-tools/nucleo-l552ze-q.html

BoM for the boards can be found under the "CAD Resources" tab of the product page.

ST often uses -U parts which are licensed slightly differently due to them being in dev boards rather than commercial equipment/boards



TR typically means tape-n-reel, so parts on a reel rather than a tray

You can always fab or find break-out boards for various IC form factors. Also lots of options on AliExpress, TaoBao for example.

Tips, Buy me a coffee, or three.. PayPal VenmoUp vote any posts that you find helpful, it shows what's working..
    mƎALLEm
    mƎALLEmBest answer
    Technical Moderator
    February 6, 2025

    Either: Nucleo board NUCLEO-L552ZE-Q as a basic board:


    Or the evaluation board STM32L552E-EV

    with a superset feature:


    For more details refer to their respective links.

    You can also use STM32CubeMx for fast search of the available boards to your device:
