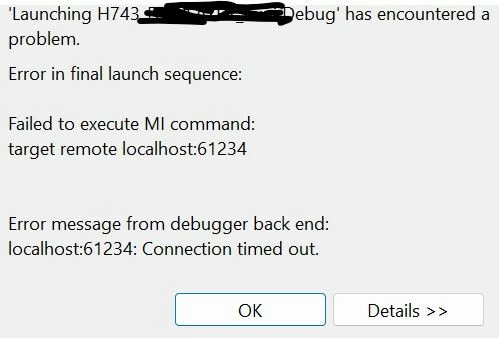

Failed to execute MI command: target remote localhost:61234

  • January 21, 2025
  • 3 replies
  • 1524 views

Hello , i have been getting this error very frequently across a few board  2x H7A3 and now i getting on H743 nucleo, sometimes i managed to resolve this by shorting boot0 pin and VCC pin then do a chip erase.  Most of the time cannot resolve this error! i am getting this error on CubeIDE 1.19.0 only. When i m using IDE1.9.0 it works perfectly and I've never seen this error. What is happening to 1.19.0 ? Why has it gone from bad to worst? Should i revert to using IDE1.9.0 ? Can ST people advise?




3 replies

Associate III
January 21, 2025

the H743 nucleo is working perfectly this morning!! dun understand why this *** pop up now !

Associate III
January 22, 2025

hello... anyone can help?

Andrew Neil
Super User
January 22, 2025

You just said it was working?

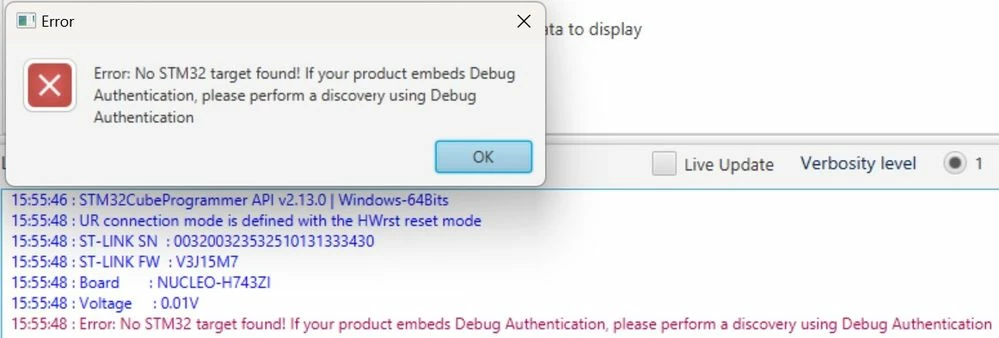

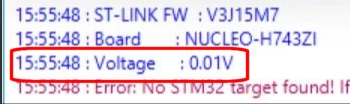

But your initial screenshot shows no target power:




A complex system that works is invariably found to have evolved from a simple system that worked.A complex system designed from scratch never works and cannot be patched up to make it work.
Associate III
January 22, 2025

yes, it was working yesterday morning, and then it died forever. I could not resolve it, I had another H7A3 nucleo also dead forever and was unable to resolve it. ok what about the 0.01 v no target power?

Tesla DeLorean
Guru
January 22, 2025

>>H743 nucleo

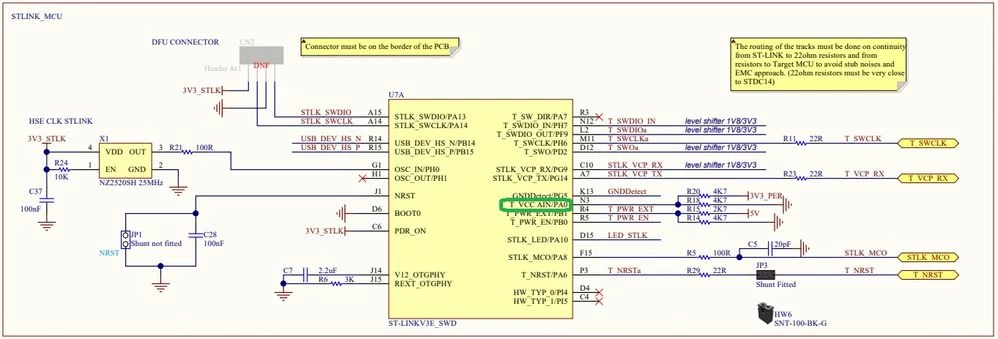

Which model? Guessing the NUCLEO-H743ZI2 as it looks to be an ST-LINK/V3 firmware

https://www.st.com/en/evaluation-tools/nucleo-h753zi.html#cad-resources

https://www.st.com/resource/en/schematic_pack/mb1364-h753zi-c01_schematic.pdf


Power jumpers?
