HAL_BUSY from LM75 via I2C on STM32L0538-Discovery

[curiae]

Hello,

I tried to get temperature data from LM75 via I2C on STM32L0538-Discovery.

But in following test program, HAL_I2C_Master_Transmit() and HAL_I2C_Master_Receive() returned HAL_BUSY.

What's wrong with it?

And I couldn't check from the schematic diagram on UM1775 if LM75 is connected with the STM32L0538.

Please show me how to solve it.

Thanks

[curiae]

Hello,

Now I found source codes in my post was deleted so I'll post again.

I tried to get temperature data from LM75 via I2C on STM32L0538-Discovery.

In following test program, HAL_I2C_Master_Transmit() and HAL_I2C_Master_Receive() returned HAL_BUSY.

Though in MX_I2C1_Init()  hi2c->State was HAL_OK, but entering to HAL_I2C_Master_Transmit(), hi2c->State was changed to HAL_BUSY.

I thought LM75 is not connected with MCU,  I couldn't check from the schematic diagram on UM1775 if LM75 is connected with the STM32L0538 or not.

Please show me how to solve it.

Thanks





#define LM75_ADDR					(0x90 << 1)
#define LM75_REG_TEMP				0x00 // Temperature

int main(void)
{
	HAL_Init();
	SystemClock_Config();
	MX_GPIO_Init();
	MX_RTC_Init();
	MX_I2C1_Init();
	// I2C test
 uint8_t data_write[2];
 uint8_t data_read[2];
 HAL_StatusTypeDef ret, ret_rec;
 I2C_HandleTypeDef *handle;
 data_write[0] = LM75_REG_TEMP;
 ret = HAL_I2C_Master_Transmit(handle, LM75_ADDR, data_write, 1, MAX_DELAY);
 HAL_Delay(100);
 ret_rec = HAL_I2C_Master_Receive(handle, 0xb9, data_read, 2, MAX_DELAY);
	while(1)
	{
	}
}

void MX_I2C1_Init(void)
{
	hi2c1.Instance = I2C1;
	hi2c1.Init.Timing = 0x10A13E56; // 100KHz
	hi2c1.Init.OwnAddress1 = 0;
	hi2c1.Init.AddressingMode = I2C_ADDRESSINGMODE_7BIT;
	hi2c1.Init.DualAddressMode = I2C_DUALADDRESS_DISABLE;
	hi2c1.Init.OwnAddress2 = 0;
	hi2c1.Init.OwnAddress2Masks = I2C_OA2_NOMASK;
	hi2c1.Init.GeneralCallMode = I2C_GENERALCALL_DISABLE;
	hi2c1.Init.NoStretchMode = I2C_NOSTRETCH_DISABLE;
	if(HAL_I2C_Init(&hi2c1) != HAL_OK)
	{
		Error_Handler();
	}
	// Configure Analog filter
	if(HAL_I2CEx_ConfigAnalogFilter(&hi2c1, I2C_ANALOGFILTER_ENABLE) != HAL_OK)
	{
		Error_Handler();
	}
	// Configure Digital filter
	if(HAL_I2CEx_ConfigDigitalFilter(&hi2c1, 0) != HAL_OK)
	{
		Error_Handler();
	}
}







[Andrew Neil]

---

@curiae wrote:

Now I found source codes in my post was deleted so I'll post again.

---

No need to start a separate thread - you could have just edited the original, or added a reply.

Merged with the original.



---

@curiae wrote:

I couldn't check from the schematic diagram on UM1775 if LM75 is connected with the STM32L0538 or not.

---

I don't see any mention of an LM75 in any of this board's documentation:

https://www.st.com/en/evaluation-tools/32l0538discovery.html

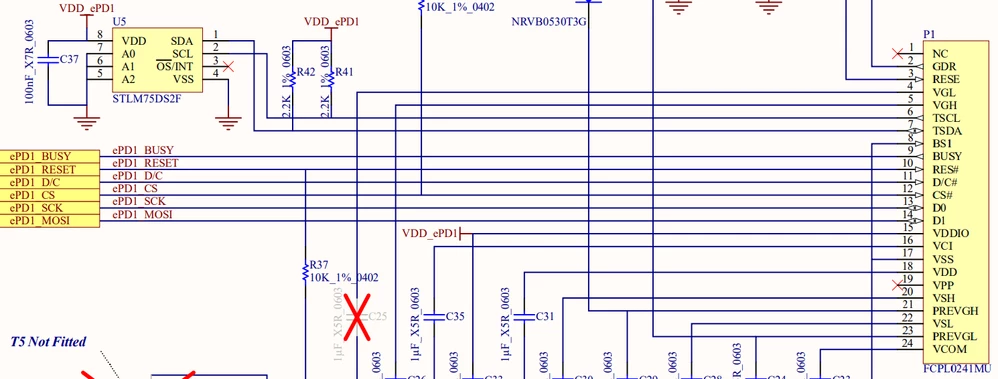

But it does appear on the schematic:

https://www.st.com/resource/en/schematic_pack/mb1143-l053c8t6-b03_schematic.pdf#page=5

[curiae]

Sorry, I should have written formal name STLM75.

Could you tell me why HAL_I2C_Master_Transmit() and HAL_I2C_Master_Receive() returned HAL_BUSY.

There are something wrong in MX_I2C1_Init()?
