How to use Nucleo-F103 ST LINK to program external target?

[Suresh_M]

Dear Experts,

Greets,

I trying to program STM32F103RCT6 micro controller using NUCLEO-F103RB evaluation board , but I am unable to debug and flash the code , i tried all the possible ways but , it didn't worked .Can somebody help me to solve this .



Best regards,

Suresh

[AScha.3]

Hi,

- show the circuit (your connections)

- show pic of your construction

to reduce the guessing about it.

[Suresh_M]

Hello AScha,

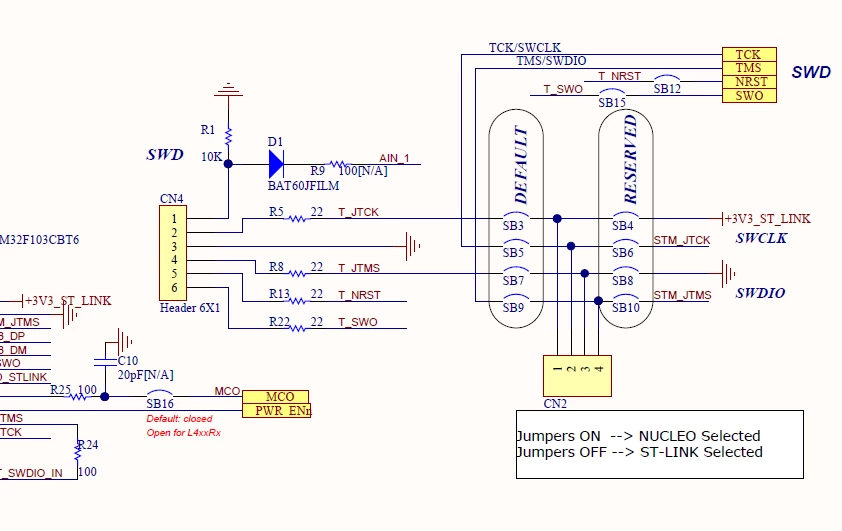

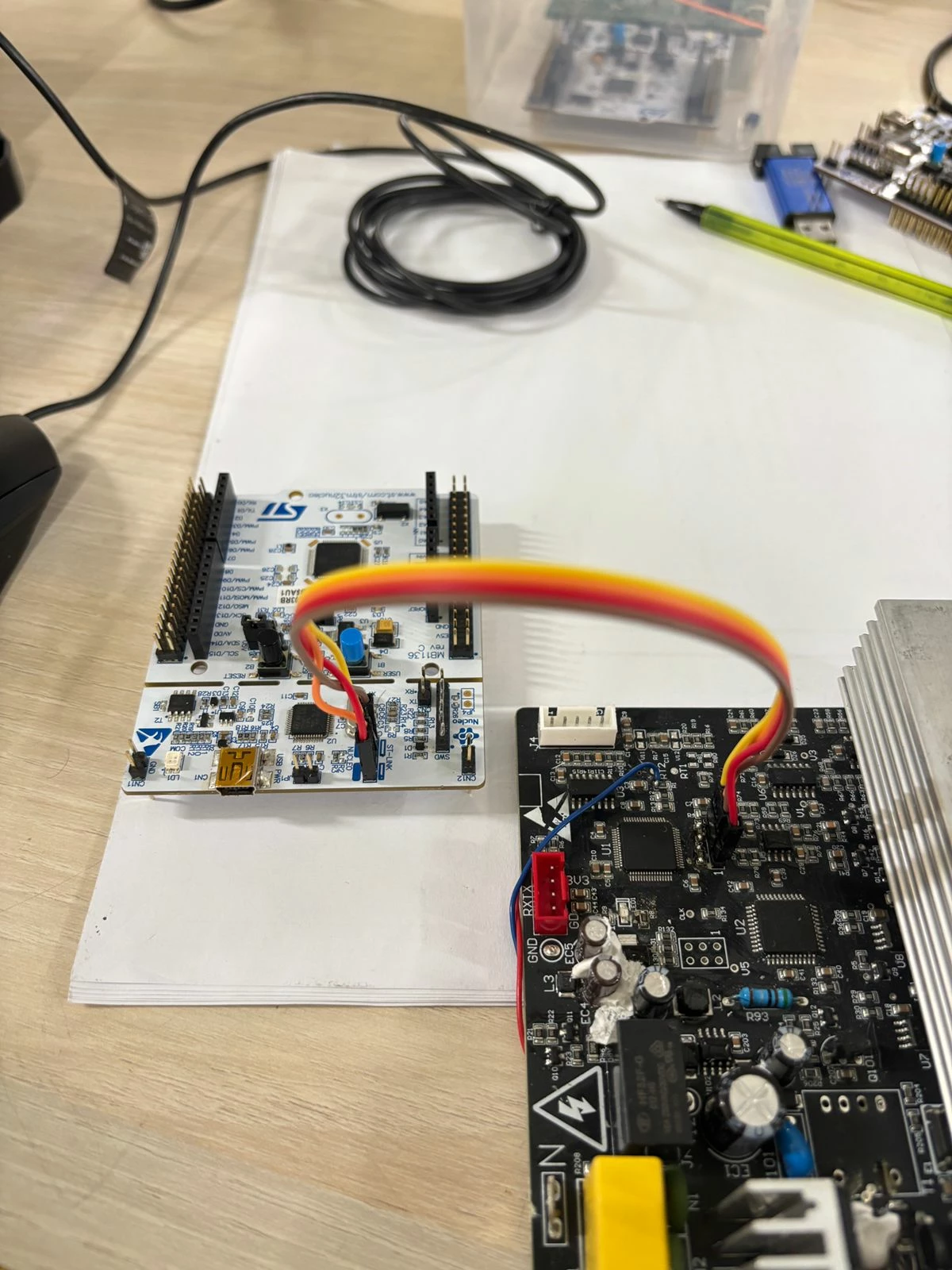

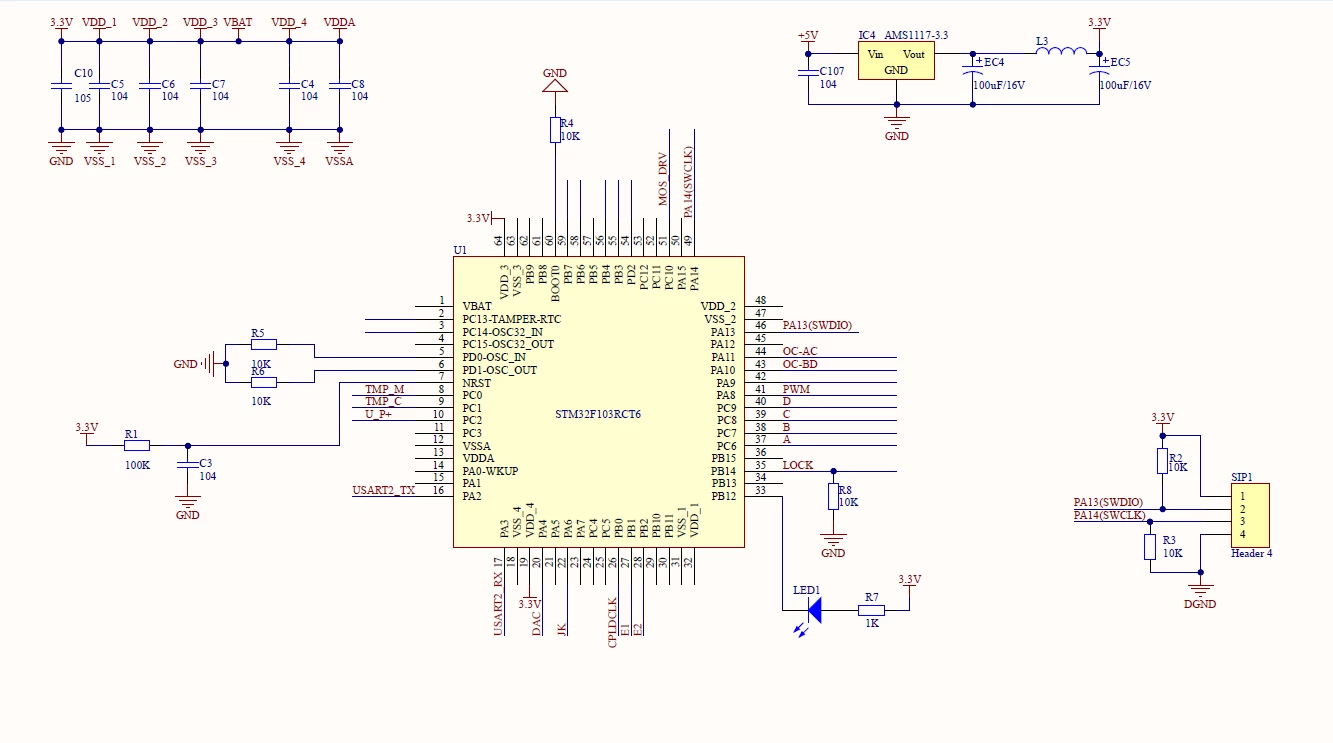

Here I've added Screenshot of PCB schematic and Nucleo-Board schematic also and along with that I added physical connection snap .



[AScha.3]

Hi,

ok, so the target board is the big board in pic ?

But your circuit shows just F103 , even without crystal ?

Try connect with CubeProgrammer , set: software reset , normal; and show , what its "telling".
