LDO Power Supply for STM32H757ZIYx

  • May 6, 2025
  • 1 reply
  • 269 views

Hello, I have seen in the post That many users had a problem with the LDO power supply for STM32H757ZI

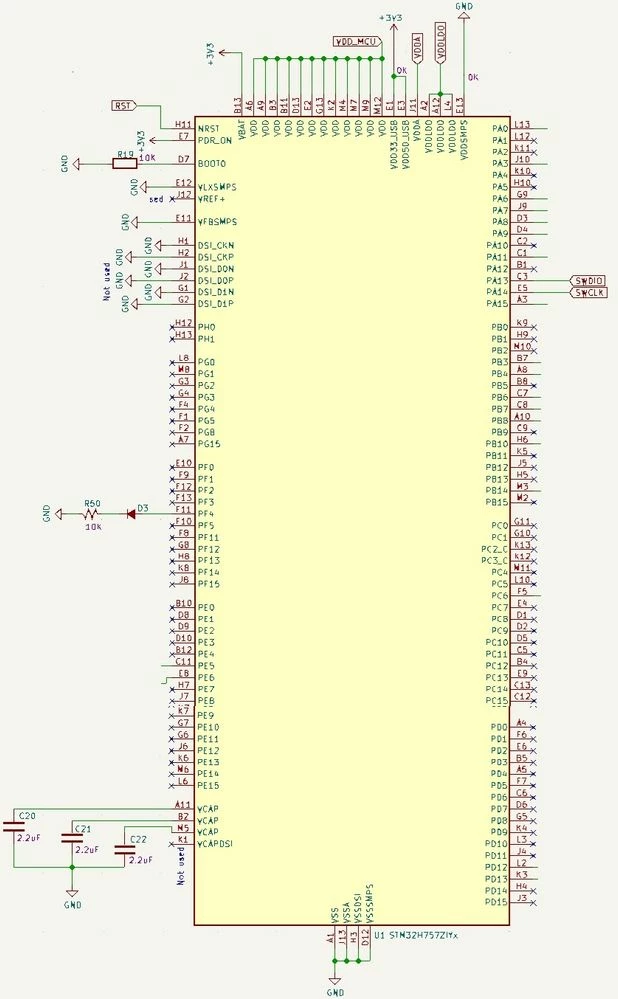

I wanted to ask, can you confirm that I have a correct implementation of the power supply for LDO?


Best answer by mƎALLEm

Hello,

1- VLXSMPS must be kept floating. It's already indicated in the post you have referred to.

2- Regarding VCAP3 (from AN4938) :


VCAP3 must be connected to other VCAP pins with only 2x2.2uF:


1 reply

mƎALLEm
mƎALLEmBest answer
Technical Moderator
May 6, 2025

Hello,

1- VLXSMPS must be kept floating. It's already indicated in the post you have referred to.

2- Regarding VCAP3 (from AN4938) :


VCAP3 must be connected to other VCAP pins with only 2x2.2uF:
