NUCLEO-C5A3ZG STM32C5 QSPI Display Bring up Project

[Seb]

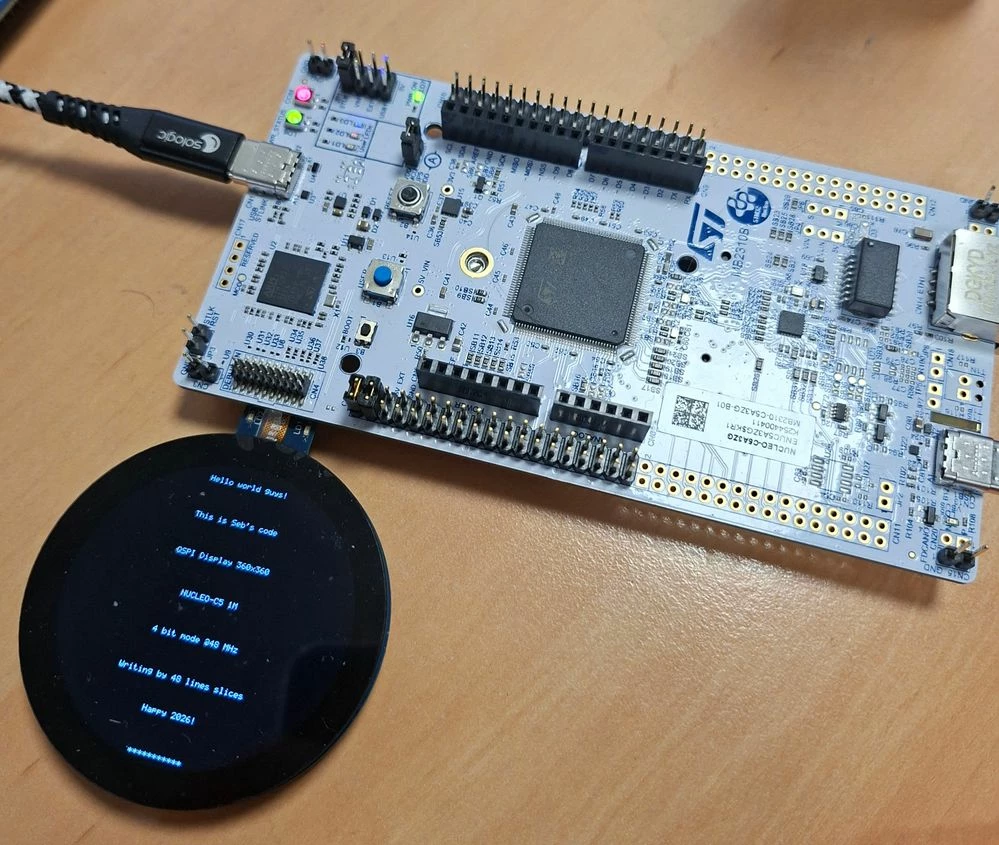

This project tests the STM32C5's XSPI capability to drive QSPI display using the NUCLEO-C5A3ZG M.2/SerialMem connector.

GitHub - stm32-hotspot/STM32C5-M2-Serial-Mem-QSPI-Display · GitHub



[Issamos]

Hello @Seb

Thank you so much for this interesting material. I think it will be better if it is pinned on a specific forum or if it is published as an article on the ST Community to be easy to find for users.
@Amel NASRI @Imen.D @Laurids_PETERSEN

Best Regards.

II

[Seb]

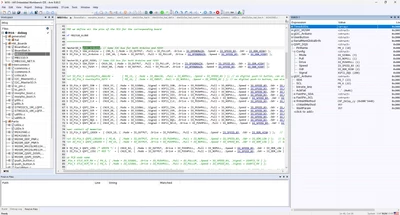

Snapshot when debugging/coding with IO_Drive

[Seb]

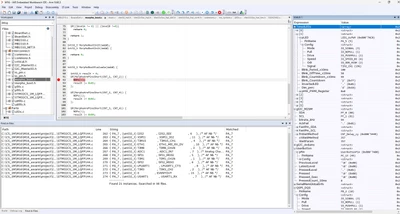

Seems a single picture per post can be done. Second snapshot :
