Nucleo-f401re: No device found on target

[Karthi_electro]

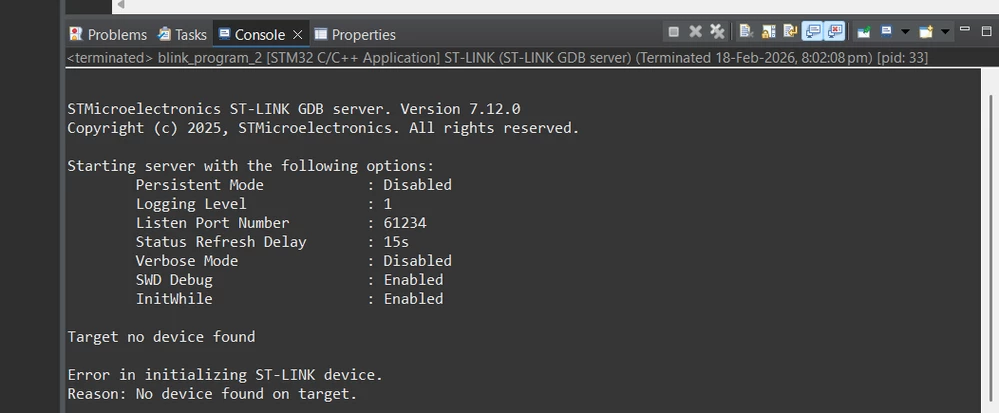

Unable to run the program in the MCU. When I try to execute the program in my Nucleof401re board, The IDE says it is not able to detect the board. I'm literally struck here just to blink an led. I kindly appreciate any possible solutions. But do explain it in simple terms as I'm new to this kind of stuffs.



[Andrew Neil]

Welcome to the forum.

You need to give some more details about your setup - see: How to write your question to maximize your chances to find a solution

[TDK]

Can you connect with STM32CubeProgrammer?

Ensure the USB cable is not power-only. The LED will be solid red when the USB connects. If it's blinking between red and off, there is no connection.

[Gyessine]

Hello @Karthi_electro and welcome to STcommunity
Can you please check if these steps are established:

• Check if USER_LED3 is turned on.
• Check if USER_LD1 is green.
• Attempt to connect to the board using STM32CubeProgrammer. If the connection is successful, what's the detected voltage.

• Check that CN2 is selected.

You can check section 6.1 from the STM32 Nucleo-64 boards (MB1136) - User manual
BR
Gyessine
