NUCLEO-H753ZI MIPI20 connector

[lando]

Hi,



I have an STM NUCLEO-H753ZI board. On the website (see https://www.st.com/en/evaluation-tools/nucleo-h753zi.html#overview) it says something about a "MIPI20 compatible connector with trace signals". What exactly is meant by that? My board only has the MIPI10 connector without the trace signals. Is there a way to get those signals from the board?



Best regards,



lando

[Tesla DeLorean]

I suspect they are thinking of the STM32H753I-EVAL(2) which has an ETM trace port, or had a copy-n-paste error

https://www.st.com/en/evaluation-tools/stm32h753i-eval.html

https://www.st.com/resource/en/user_manual/um2198-evaluation-boards-with-stm32h743xi-and-stm32h753xi-mcus-stmicroelectronics.pdf

@STTwo-32

https://www.st.com/en/evaluation-tools/nucleo-h753zi.html#overview:~:text=Camera%20module%20FPC-,MIPI20,-compatible%20connector%20with

[Imen.D]

Hello @lando ,

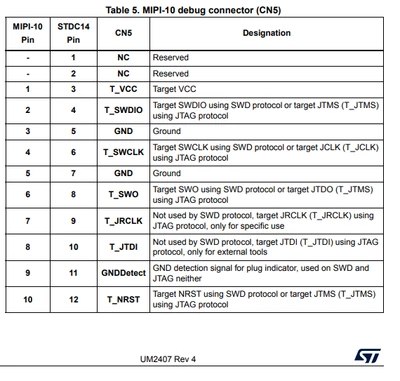

The NUCLEO-H753ZI board has a MIPI-10 debug connector (CN5). For more details, please refer to the UM2407 User manual STM32H7 Nucleo-144 boards (MB1364)

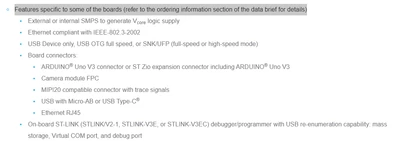

Note that the text in the NUCLEO-H753ZI Overview ST web page is generated by the data-brief itself. Practically, the Data brief is common to all STM32 Nucleo-144 and the Board-specific features paragraph mentions features which are supported by some boards but not ALL of them. It is required to review the Table 1 in the Ordering information section of the Data brief to get details.
