NUCLEO-H7S3L8 HSE times out

[qua]

I am trying to set up a basic USB project on a NUCLEO-H7S3L8. It works okay with the HSI, but I need the HSE. I can see that the board has a 24MHz crystal fitted and resistors on SB14 and SB15. It's unmodified from the factory.

HAL_RCC_OscConfig() always returns with a timeout when trying to activate the HSE. I've tried various settings but can't get it to work.

I have attached my .ico file. The code is just what CubeMX generates. Thanks.

[AScha.3]

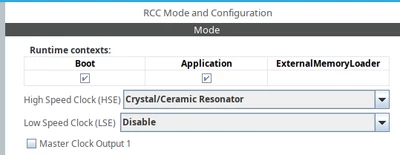

Did you set it like this ?

+ in clock tree set the 24M

It should work then. (My H7S3 does.)



[qua]

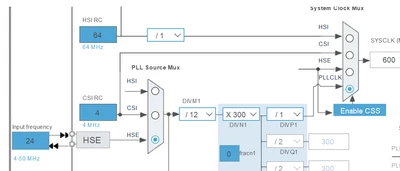

Looks like it is set correctly.

[AScha.3]

Did you set it like this ?

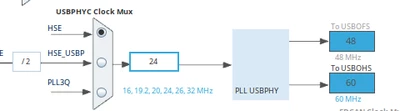

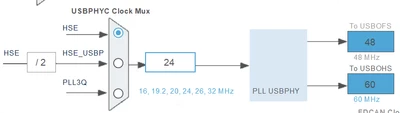

... and USB:



[qua]



[mƎALLEm]

Hello,

I tested your ioc file and generated a project and it's working fine from my side on a NUCLEO-H7S3L8.

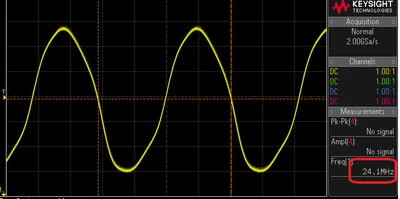

May be you need to check OSC_OUT pin with an oscilloscope:

I suspect an issue in your board.

Do you have another board that you can run the test with?

[qua]

AScha.3 that works for me too.  mƎALLEm I can see a 24MHz sine wave on that pin.

I have made some progress though. I found that certain settings that CubeMX says are okay don't actually seem to work. I initially had the HSE divided by 12 into the PLLs. Changing it to divided by 2 (and adjusting the multiplier to give 600MHz) allows it to get past setting the system clock.

It's odd that the timeout is with setting up the HSE rather than the PLL, and odd that it works for other people. I will continue to investigate.

[qua]

I think this is that old issue with CubeMX where sometimes it just doesn't build working code, but if you change things enough eventually whatever needs to be fixed gets fixed and the code is okay. Copying the .ico file to a new project works for me too.

I am not able to use USB CDC to work, but it's probably the same sort of bug.

[mƎALLEm]

---

@qua wrote:

Copying the .ico file to a new project works for me too.

---

Is there any specific difference in the path?

Did you detect any difference in the generated code between both cases?

[qua]

The CDC example has "Drivers\BSP\STM32H7RSxx_Nucleo\stm32h7rsxx_nucleo_usbpd_pwr.c" and .h, mine doesn't. Weird as I selected the same Nucleo board when creating the project. I wonder if there is some issue related to it not setting up the USB power properly. I'll find some time to do a proper fresh project.

[qua]

Yes, I re-loaded your .ico from scratch and it still didn't work.

I feel the same, it's usually an issue with the code that stops it working, but maybe I was blaming CubeMX because I've had issues like that before with it, when it was in fact the hardware.

I really just want to test the USB HS to see what kind of throughput I can get.

[AScha.3]

So it seems, something happened .

Sure, there was no ESD ?

Clear way to test would be, you buy a new board and load the program to test it.

If it works fine, but the old dont, then, if board is almost new, return for exchange.

[qua]

Yeah, I might stick a new board on my next Digikey order. Or I might just look at other devices with USB HS capability.

Unfortunately ST don't offer many Nucleo boards with USB HS. They have some F4 parts with it, but don't seem to have any evaluation boards. Microchip are no better, no eval boards for their HS capable ARM parts. I kinda want ethernet too, although it's less important.
