Ruồi
Associate III
July 19, 2024
Question

nucleo stm32h755 has a faulty stlink charging circuit

  • July 19, 2024
  • 1 reply
  • 1030 views

I accidentally disabled the 3v3 pin on CN8, so now my Nucleo h755 board can no longer load the code.

In this case is there a way to save?
Thanks,

1 reply

AScha.3
Super User
July 19, 2024

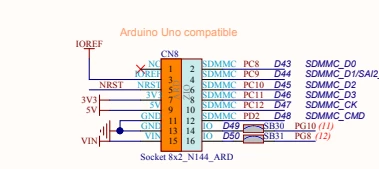

What you "disabled " on pin header ?


+

For flash the code, st-link is connected on CN1 , and powers also the H755 .

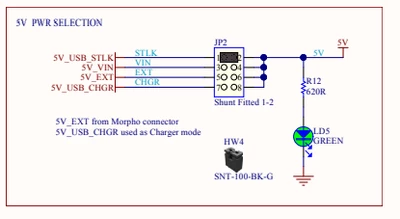

So check JP2 :




"If you feel a post has answered your question, please click ""Accept as Solution""."
Ruồi
RuồiAuthor
Associate III
July 19, 2024

I connected pin 3v3 on CN8 to pin GND.\

STLINK is still alive but STM32H755 can no longer be seen.
