ST-LINK: "Failed to execute MI command" & "Error in initializing ST-LINK device

[Naveen12]

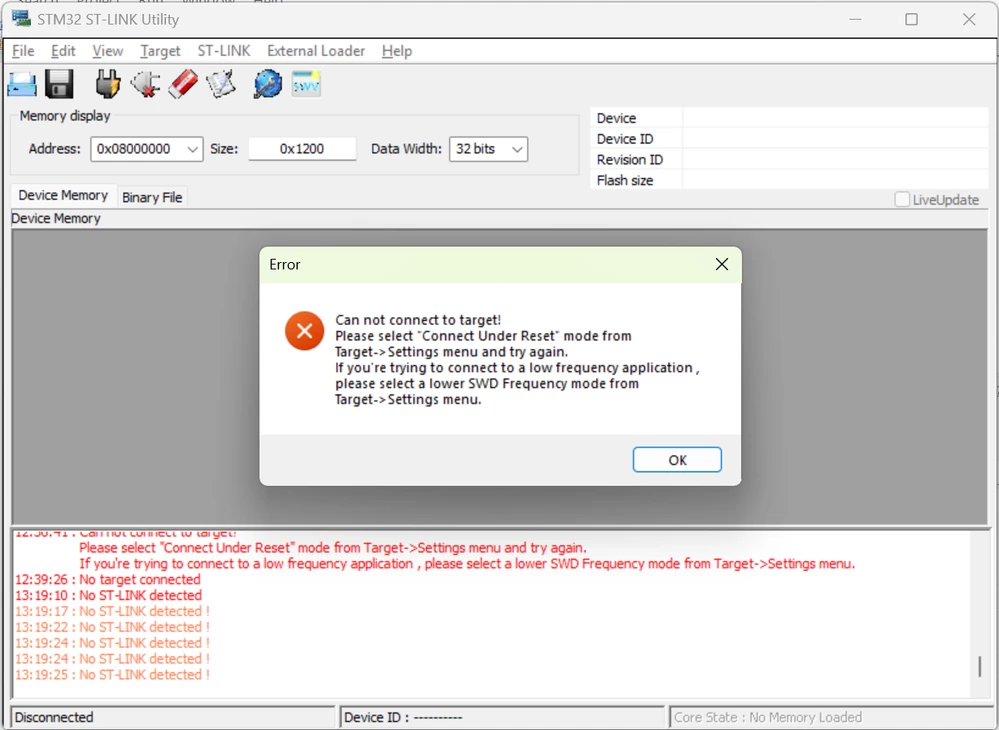

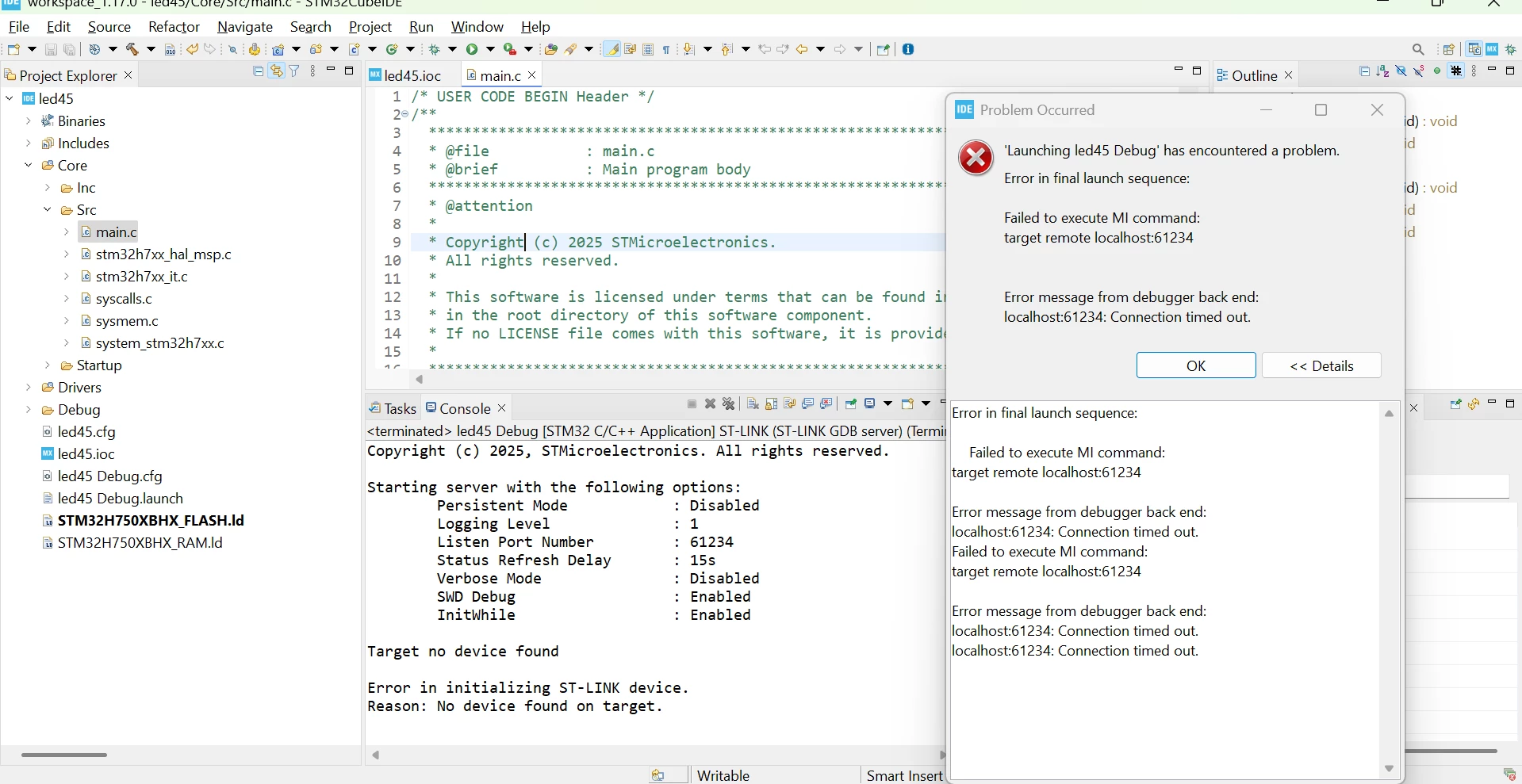

We are using STM32CubeIDE to configure the STM32 controller. Previously, flashing the code to the board was working fine. Recently, while trying to debug, the IDE started showing this error: "Failed to execute MI command""Error in initializing ST-LINK device" We tried upgrading the ST-LINK driver, and the controller responded to the host. In STM32 ST-LINK Utility, we could select the External Loader, which means the connection seemed okay.However, when we tried to erase the flash using ST-LINK Utility, we got:
"Target not connected" We tried many solutions in STM32CubeIDE, but we could not identify the root cause. Could anyone please help us understand what might be going wrong?

[Peter BENSCH]

Welcome @Naveen12, to the community!

Please add photos of the front and back of your ST-LINK here.

Regards
/Peter

[Naveen12]

[Mike_ST]

Hello,

Please use STM32Cubeprogrammer, ST-Link utility is deprecated:

STM32CubeProgrammer

The error message "No device found on target" indicates that the STM32H7 is probably not powered, or is in a state where it can't be accessed.

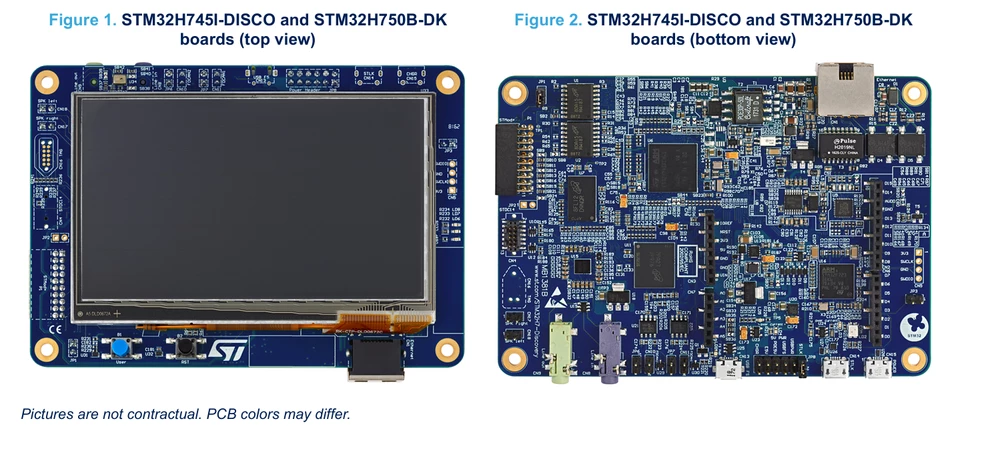

Please download the User Manual , and check the jumpers and solder bridges configuration.



[Andrew Neil]

Welcome to the forum.

You need to supply some more details - see: How to write your question to maximize your chances to find a solution.



Have you seen:

https://community.st.com/t5/stm32-mcus/how-to-solve-connection-errors-when-connecting-and-programming/tac-p/786977

https://community.st.com/t5/stm32-mcus/how-to-solve-debugger-connection-issues/ta-p/49693



Are you using a genuine ST-Link:

https://community.st.com/t5/stm32-mcus/how-to-recognize-a-genuine-st-link-v2-versus-a-cloned-one/ta-p/49471



Note that the old ST-Link Utility is long obsolete - have you tried CubeProgrammer ?

[Andrew Neil]

---

@Naveen12 wrote:

 Recently, while trying to debug, the IDE started showing this error:

---

So what did you change immediately before that started happening?
