ST-link not detected

  • April 26, 2024
  • 4 replies
  • 1695 views

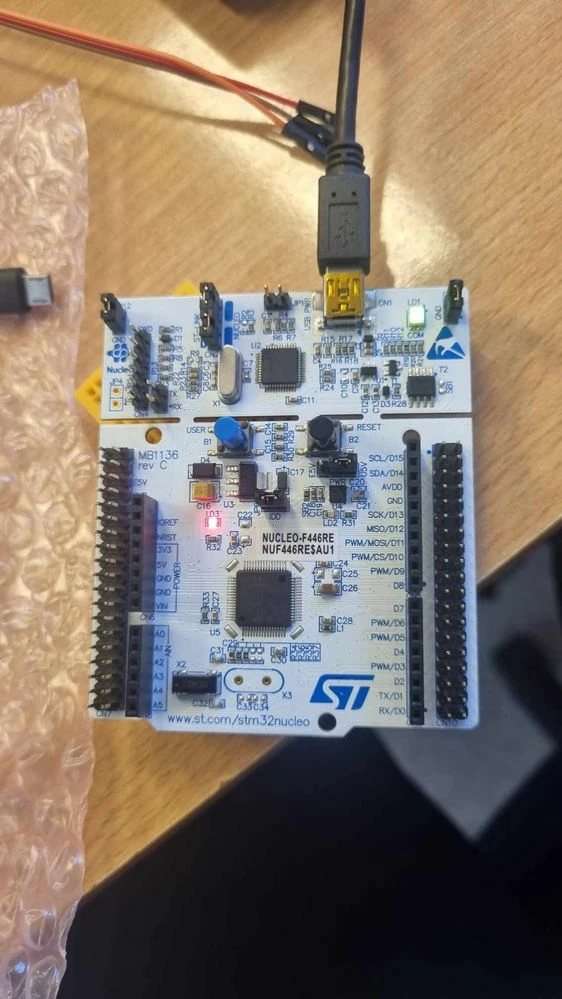

im using th nucleo-f446re board, and the st-link isn't there. Am i missing some jumper connection?438223402_1155287935895863_1986240574336375964_n.jpg





Best answer by Uwe Bonnes

Check other cables, check other PC USB ports.

4 replies

Uwe Bonnes
Uwe BonnesBest answer
Chief
April 26, 2024

Check other cables, check other PC USB ports.

Pavel A.
Pavel A.
Super User
April 26, 2024

Open Device Manager and turn on the computer sound. When you connect and disconnect the USB cable, is there any sound or update in Device Manager?



    M
    Mr4Author
    Associate III
    April 26, 2024

    yes both a sound is being made and the board is shown in device manager





    Andrew Neil
    Andrew Neil
    Super User
    April 26, 2024
    @Mr4 wrote:

     the st-link isn't there.

    What do you mean by that?

    Where are you looking?



    A complex system that works is invariably found to have evolved from a simple system that worked.A complex system designed from scratch never works and cannot be patched up to make it work.
    T
    trakis
    Visitor II
    August 11, 2024

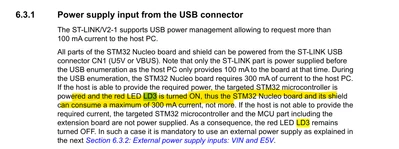

    According to the User Manual, LD3 shows an overcurrent event (which in your case is red)
