TFBGA225 Footprint on Discovery/Nucleo - why the holes, etc?

  • February 23, 2026
  • 2 replies
  • 193 views

Is there any utility in the holes and silkscreen circles around the TFBGA225 on the NUCLEO-H7S3L8?  It appears to be the same pattern on the Discovery board, suggesting it might be for BGA placement or maybe a heatsink.





Edited to put the image in-line for better visibility

2 replies

Andrew Neil
Super User
February 23, 2026

See this thread - it's probably for a ZIF socket used internally by ST for (early?) development.

Perhaps @mƎALLEm can confirm?



PS:

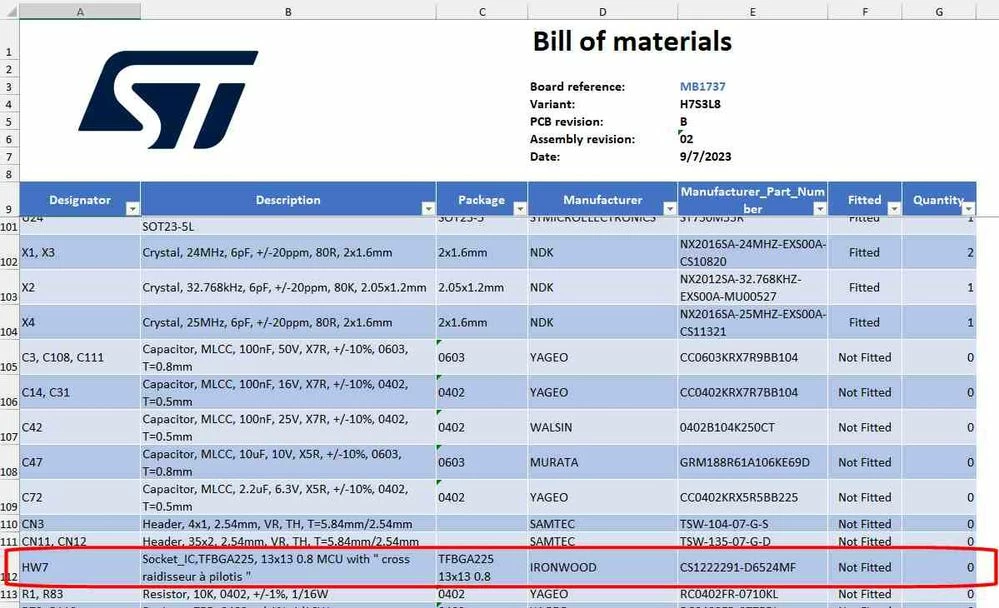

As @waclawek.jan noticed in the other thread, it's in the BoM:




A complex system that works is invariably found to have evolved from a simple system that worked.A complex system designed from scratch never works and cannot be patched up to make it work.
mƎALLEm
Technical Moderator
February 23, 2026

Hello,

These indeed are holes for a TFBGA225 socket.

The boards with socket are available only for ST internal developement usage not available on the market.

The PCB is common for the developement and market versions.



"To give better visibility on the answered topics, please click on ""Accept as Solution"" on the reply which solved your issue or answered your question."
