What is the pin pitch of STM32H747I-DISCO connectors.

[Paco]

Hi All,

What is the pin pitch of each connector on STM32H747I-DISCO kit bellow. Pin pitch means the distance measured from the center of one pin to the center of the next pin.

・STMod+ connector

・Pmod connector

・ARDUINO connector

Thanks in advance.

[Mike_ST]

Hello,

・STMod+ connector => 2mm

・Pmod connector => 2.54mm

・ARDUINO connector => 2.54mm for the shortest distance. But the 4 connectors implementation is exotic. Please check the CAD files here:

STM32H747I-DISCO CAD files





[Andrew Neil]

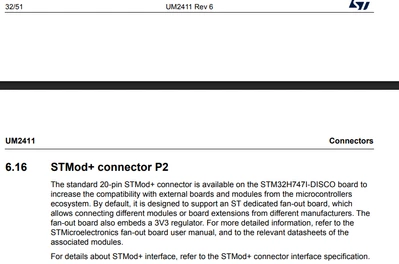

@Mike_ST The UM refers to these as "standard" connectors. It would be helpful if it gave links to the specifications.









[Mike_ST]

More infos on those connectors:

STMod+ specification

PMOD specification
