CubeMX2, even when doing transmit or receive only I2S, both SDI and SDO are muxed

[VPant.7]

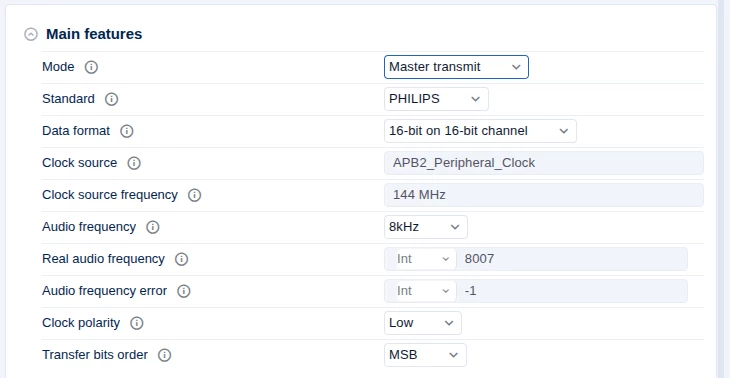

e.g. select I2S with "Master transmit" which should only use I2S_CK, I2S_WS and I2S_SDO, yet the I2S_SDI pin is also muxed and blocked for other use (and both DMA directions are available)



[VPant.7]

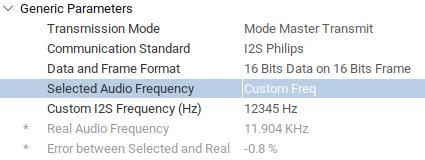

with old CubeMX, one could select a custom sample rate:



new CubeMX2 only provides a fixed list, it should also allow a user defined sample rate

[Saket_Om]

Hello @VPant.7

Thank you for bringing this issue to our attention.

I reported this internally.

Internal ticket number: CDM0061115
