Errors building GPIO_EXTI example project for the STM32F746ZG_Nucleo in the STM32CubeIDE

Forum|Forum|10 months ago
July 2, 2025
5 replies
1208 views

Hello all,

I am trying to compile STM32F7xx_HAL_Driver using gcc toolchain in mingw. I am trying to build the example project GPIO_EXTI for the STM32F746ZG-Nucleo.

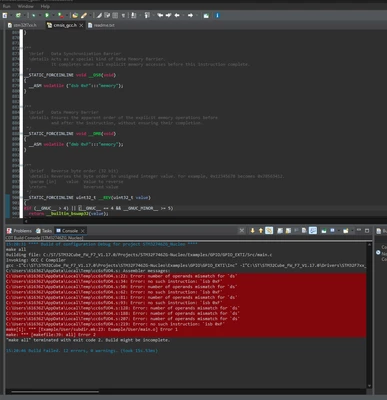

Here's a snip of my console output:

Would appreciate any help!

AScha.3

Super User

Hi,

>I am trying to compile STM32G4xx_HAL_Driver using gcc toolchain in mingw.

Just -why ? game ? challenge ?

Why not using the stm IDE ?

"If you feel a post has answered your question, please click ""Accept as Solution""."

T

twhoward93Author

Associate

Hey sorry if there was any confusion in my post, that was a typo on my part.

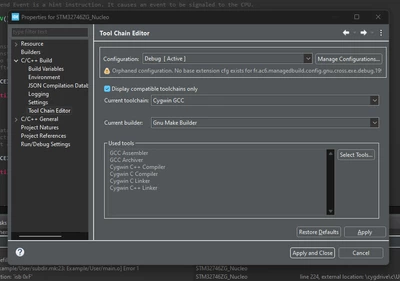

I am using the STM32CubeIDE as well as the MinGW GCC toolchain and the Gnu make builder

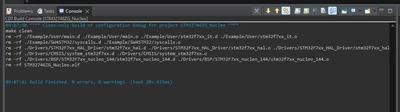

It will clean just fine:

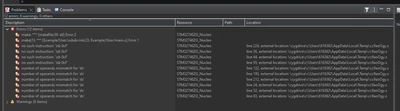

But when I try and build I get this:

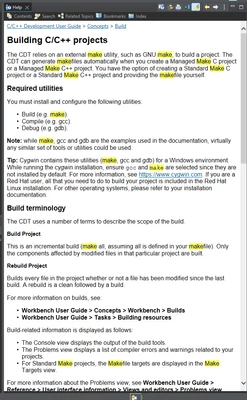

As far as not using the default toolchain I was under the impression that the STM32cubeIDE did not have native tools to produce make files, etc.

mƎALLEm

Technical Moderator

Hello,

The confusion also resides in the title "building STM32G4 HAL example for STM32F746ZG-Nucleo"!

Why are you building STM32G4 HAL example for STM32F746ZG-Nucleo?

They don't belong to the same MCU family!

"To give better visibility on the answered topics, please click on ""Accept as Solution"" on the reply which solved your issue or answered your question."
