MCU package vs patch

[bsp]

Hello everyone, I need to install the firmware support package for STM32H7 series offline. On the website (STM32CubeH7 | Product - STMicroelectronics), I found both the "STM32Cube MCU Package for STM32H7 series" and the "Patch for STM32CubeH7". What is the difference between them ?

[Andrew Neil]

In standard computer terminology, a "Patch" is an update to some existing software - without having to completely replace the whole thing.

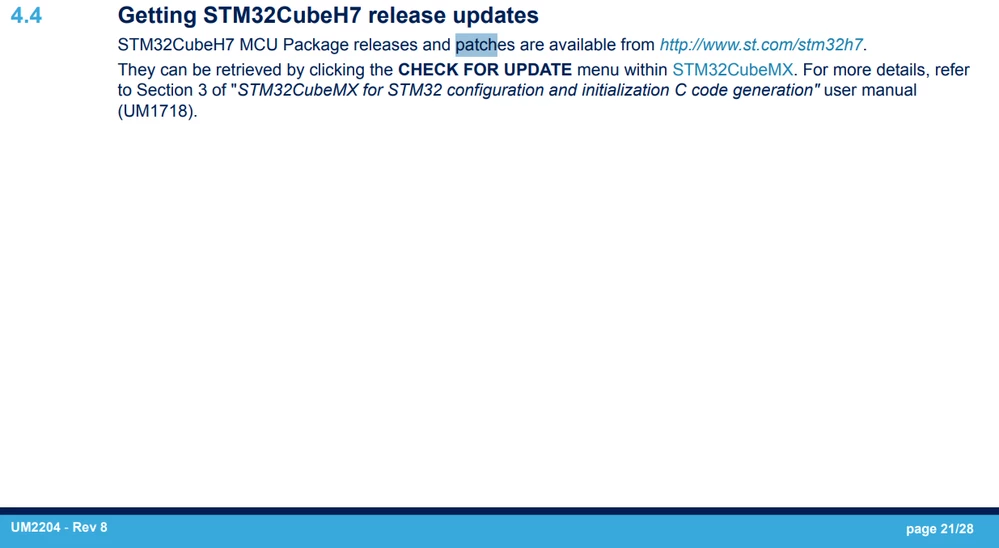

For specific details, see UM2204, Getting started with STM32CubeH7 for STM32H7 series MCUs:



[bsp]

Thank you and I already know the meaning of "patch"

[Mahmoud Ben Romdhane]

Hello @bsp ,



First let me thank you for posting.

Main Changes on STM32H7 Firmware v 1.12.1

• General updates to fix known defects and enhancements implementation.
• Fix wrong computed clock frequencies in HAL RCC driver.
• CMSIS updates
• system_stm32h7xx.c template files
• Fix computed frequencies returned by the HAL_RCC_GetHCLKFreq(), HAL_RCC_GetPCLK1Freq(), and HAL_RCC_GetPCLK2Freq() APIs.
• Enable FMC clock to ensure effective write access to FMC Bank1 registers in the SystemInit() API.
• STM32H723/H725/H730/H733/H735 devices header files
• Align the RTC TAMPER register and bitfields naming with the terminology used in the Reference Manual (RM0468).
• STM32H742/H743/H745/H747/H750/H753/H755/H757/H7A3/H7B0/H7B3 device header files
• Define new RTC macros to manage specific supported Tamper features:
• RTC_TAMPER2_SUPPORT to manage Tamper 2 support
• RTC_TAMPMASKFLAG_SUPPORT to manage Tamper Event Masking support
• RTC_TAMPNOERASE_SUPPORT to manage Backup Registers erasure upon Tamper Event support
• RTC_TAMPxIE_SUPPORT to manage selective TAMPERx interrupt enable support.
• HAL updates
• HAL PWR
• Add a note to the HAL_PWREx_ConfigSupply() API documentation to clarify that this API comes obsolete after deploying "how to exit from Run* recommended sequence.
• HAL QSPI
• Fix possible race condition with QSPI data transfer when using DMA.
• HAL/LL RTC
• Alignment with new RTC TAMPER register and bitfields naming in the CMSIS.
• Add new restrictions to manage specific Tamper features.
• HAL HSEM
• Update __HAL_HSEM_ENABLE_IT(), __HAL_HSEM_DISABLE_IT(), __HAL_HSEM_GET_IT(), __HAL_HSEM_GET_FLAG() and __HAL_HSEM_CLEAR_FLAG() macros to be aligned with registers’ names in the CMSIS.
• Project updates
• Update all projects to be aligned with CMSIS system_stm32h7xx.c template files:
• Fix computed frequencies returned by the HAL_RCC_GetHCLKFreq(), HAL_RCC_GetPCLK1Freq(), and HAL_RCC_GetPCLK2Freq() APIs.

For more details, I suggest that you take a look at the Release Note provided into STM32Cube_FW_H7_V1.12.1.



Thanks.

Mahmoud

[bsp]

Thank you, can I install firmware patch in STM32CubeIDE with "manage embedded software packages" ?

[Mahmoud Ben Romdhane]

Hello @bsp ,



This functionality is well supported on STM32CubeIDE.

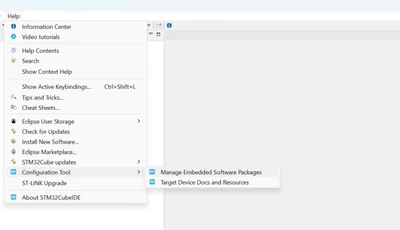

Under [Help] [Configuration Tool], you can manage the Embedded Software Packages.



Thanks.

Mahmoud
