Moving code from G030 to C011

[stevecimo]

Hi All

I have a breakout board, I've been testing some ws2812 code , I'm using  TIM1 with DMA + PWM

I developed the code on the G030, it's a 32 pin package.

I'm using internal clock and have it running at 48MHz for Timers.

Works has intended.



Switch to C011 in an 8 Pin package.

Created new project in MX and just copied over the code I added.

I'm using internal clock and have it running at 48MHz for Timers.

Code does not work.  complies fine, but the leds not work.

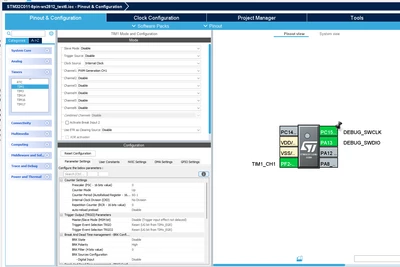

In both porjects I am using TIM1 , configured the same way.



I don't have a Scope where I can view the PWM output

Question:  Does anyone of a any differences between how TIM1 works between both MCU? I looked through  AN5969   Migrating between STM32G0 and STM32C0 MCUs  and nothing jumped out.

Can I use CudeMonitor to review the PWM?



Any suggestions would be highly appreciated.



Regards, Stephen







[Sarra.S]

Hello @stevecimo,

The STM32C0 series and STM32G0 series are pin-to-pin compatible, using the same package ofc!

Are you using this package for STM32C011 and for the STM32G030?



[stevecimo]

Hi Sarra



I'm using an 8 pin package for the C011 and a 32 pin package for the G030



Regards, Stephen

[AScha.3]

It should work...if compiler shows no warnings...?

+

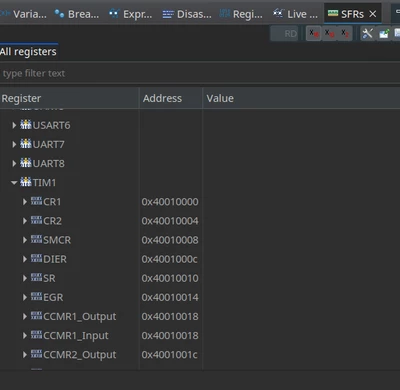

to check, the tim/pwm setting: just stop it in debug and look at sfr -> tim1 , to see, whats it doing:





[stevecimo]

No warnings, compile is clean in both projects



I'm on my way to work, I'll see if I can run the debug checks in a few days, have to study for an Azure test tonight. ( at 58 years old and 40 years working in IT, work still wants me to do  Azure test..I hate tests....)





[Hl_st]

Hello,

can you please share also your projects?

[stevecimo]

happy to , has log has no one laugh's out loud at my coding :)



Bottom line, is I have made some 7 segment led displays 19mm x 12mm  using ws2812 leds

[stevecimo]

basically  I first create an array  of  color (rgb) data for 7 leds, in the correct order

color = ((LED_Data[i][1]<<16) | (LED_Data[i][2]<<8) | (LED_Data[i][3]));

then from this array , i create an second array to hold the pwm data to be sent via DMA.

for (int i=23 ; i>=0; i--)

{

if (color&(1<<i))

{

pwmData[index] = 40; // 2/3 60 using 48MHz clock with AAR of 60 800KHz

}

else pwmData[index] = 20; // 1/3 of 60

index++;

}

}

for (int i=0; i<50; i++)

{

pwmData[index] = 0; // add some zeros at the end to flag end of transmission

index++;

}

HAL_TIM_PWM_Start_DMA(&htim1, TIM_CHANNEL_1, (uint32_t *)pwmData, index);

while (!datasentflag){};

datasentflag = 0;

}

This works fine with the G030, nothing or random leds light up with the C011

Both MCU are using a 48MHz timer clock. 0 Prescaler and an arr of 60 to give 800KHz timing

C011:



htim1.Instance = TIM1;

htim1.Init.Prescaler = 0;

htim1.Init.CounterMode = TIM_COUNTERMODE_UP;

htim1.Init.Period = 60-1;

htim1.Init.ClockDivision = TIM_CLOCKDIVISION_DIV1;

htim1.Init.RepetitionCounter = 0;

htim1.Init.AutoReloadPreload = TIM_AUTORELOAD_PRELOAD_DISABLE;



G030



htim1.Instance = TIM1;

htim1.Init.Prescaler = 0;

htim1.Init.CounterMode = TIM_COUNTERMODE_UP;

htim1.Init.Period = 60-1;

htim1.Init.ClockDivision = TIM_CLOCKDIVISION_DIV1;

htim1.Init.RepetitionCounter = 0;

htim1.Init.AutoReloadPreload = TIM_AUTORELOAD_PRELOAD_DISABLE;

 On the G030 I us PLL to get a 48MHz clock (C011 runs 48MHz internal clock)



/** Initializes the RCC Oscillators according to the specified parameters

* in the RCC_OscInitTypeDef structure.

*/

RCC_OscInitStruct.OscillatorType = RCC_OSCILLATORTYPE_HSI;

RCC_OscInitStruct.HSIState = RCC_HSI_ON;

RCC_OscInitStruct.HSIDiv = RCC_HSI_DIV1;

RCC_OscInitStruct.HSICalibrationValue = RCC_HSICALIBRATION_DEFAULT;

RCC_OscInitStruct.PLL.PLLState = RCC_PLL_ON;

RCC_OscInitStruct.PLL.PLLSource = RCC_PLLSOURCE_HSI;

RCC_OscInitStruct.PLL.PLLM = RCC_PLLM_DIV1;

RCC_OscInitStruct.PLL.PLLN = 9;

RCC_OscInitStruct.PLL.PLLP = RCC_PLLP_DIV2;

RCC_OscInitStruct.PLL.PLLR = RCC_PLLR_DIV3;





[KnarfB]

There shouldn't be a difference at the HAL level.

Are the pins properly configured?

Same LEDs or other ones? Some are said to need a longer (300++ µs) reset pulse.

A $10 USB logic analyzer could be a great help here.

hth

KnarfB

[stevecimo]

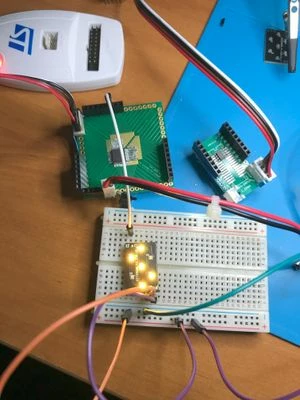

This is my basic setup, I just swap the 2 break out boards, same leds , using a bench powersupply at 3.3 volts ,

I preformed all my original testing with the G030, with the C011 , I have only run basic led toggling code. before trying to move my code from G030 to it.



All done with the CubeIDE, just configured a new project for the C011

, Then used the IDE's compare file feature to code over my parts of the code from the G030 main.c, not using any libraries or extra .h .c files.....



Hmmm, maybe I should double check I have  selected the right C011?  apart from Flash sizes, is there any difference in timer operations between submodels to the same main MCU type?



[stevecimo]

Just checked my order, parts order where STM32C011J6M6



I might try a different timer.

[stevecimo]

I added a simple led  toggle on a gpio pin and it never toggles

while (1)

{

int z = 9;

while (z >= 0) {

Set_Display(z, "orange");

WS2812_send();

HAL_Delay(1000);

--z;

}

HAL_GPIO_TogglePin(LED_GPIO_Port, LED_Pin);

z=0;

while (z <= 9) {

Set_Di

splay(z, "green");

WS2812_send();

HAL_Delay(1000);

++z;

}

z=9;

/* USER CODE END WHILE */



/* USER CODE BEGIN 3 */

}



I'll keep looking :)



[KnarfB]

What you have shown looks okay.

Can you set that pin statically to 0 and 1 and measure the output level, i.e. a classic blinky? Could it be a soldering issue?

hth

KnarfB

[stevecimo]

I'll give it a try, I have received some samples MCU, Including G , F, H series in different packages....

including a Nuceo-F103RB

[Nemui Trinomius]

Dear stevecimo,

I guess there is lack of basically thing.
You should not think easily migration from STM32G0.
Build a project as “STM32C0" from scratch.

Also don't forget to read the datasheet/reference-manual/errata-sheet carefully.

Best regards,
Nemui.

[stevecimo]

But I did build the project from scratch, started a new project , selected the MCU, configured the timer and clock using cubeMX , then just copied my code across.....



This is what ST recommend when moving between MCU?

I just used the same process to move the code to a Nucleo F103RB and is working....



I think I'm going to move to 20pin package and have some G and F in 20pins .



:)



[Nemui Trinomius]

Dear stevecimo,

Here is my simplest STM32C0 project("moving from" G0 project below).
https://nemuisan.blog.bai.ne.jp/?eid=192848#STM32C0

STM32G0 is here.
https://nemuisan.blog.bai.ne.jp/?eid=192848#STM32G0

Those project includes timer setting(for uSec wait timer).
And NO-CUBEIDE/NO-CUBEMX to avoid buggy code generation.

I do not have intend to answer anymore,but may be I told the just answer :)

Best regards,
Nemui.

[stevecimo]

Thanks, I'll take a look :)

[stevecimo]

I have yet to figure this out, I've received some 20 pin G030 and my code works fine on them, so I'll stick with the G030 for now . :)

I also purchased a F103 Nucleo board and a C011 Discovery board and a Chinese Bluepill (F103 I think it's using a real STm32)  .

My code moves to the F103 fine (both boards) , still does not work on the C011 Discovery.......

When I get an Oscilloscope  , I'll take another look :)



Thanks for help :)

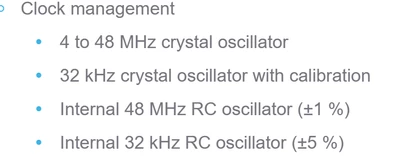

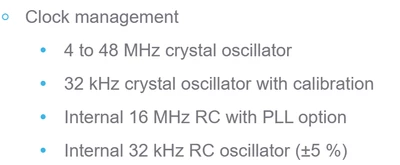

[MM..1]

You can miss many thinks, but primary read first carefuly about mcus.

C011

G030

no PLL vs PLL usw.
