stm32f411 as USB speaker: not able to respond to URB_ISOCHRONOUS IN
I'm a USB newbie and am trying to use the STM32F411CEU6 as a USB mic. I'm currently using FreeRTOS (cmsisV1) and the Cubemax USB library. My device currently enumerates normally, but when the host sends a URB_ISOCHRONOUS_IN request, my MCU won't handle it properly (according to SWD and serial port debugging, I found that the MCU won't even enter the OTG_FS_IRQHandler interrupt when the host sends this request). This has been bothering me for a long time. Here are my descriptors and some configuration code:
__ALIGN_BEGIN static uint8_t USBD_AUDIO_CfgDesc[] __ALIGN_END =
{
/* Configuration Descriptor Head */
0x09, // bLength
0x02, // bDescriptorType = CONFIGURATION
0x6D, 0x00, // wTotalLength = 109 bytes
0x02, // bNumInterfaces = 2 (Audio Control + Audio Streaming)
0x01, // bConfigurationValue
0x00, // iConfiguration
0x80, // bmAttributes: Bus powered
0x32, // bMaxPower: 100mA
/* -------- Audio Control Interface (Interface 0) -------- */
0x09, // bLength
0x04, // bDescriptorType = INTERFACE
0x00, // bInterfaceNumber = 0
0x00, // bAlternateSetting
0x00, // bNumEndpoints
0x01, // bInterfaceClass = AUDIO
0x01, // bInterfaceSubClass = AUDIOCONTROL
0x00, // bInterfaceProtocol
0x00, // iInterface
/* Class-Specific AC Interface Header Descriptor */
0x09, // bLength
0x24, // bDescriptorType = CS_INTERFACE
0x01, // bDescriptorSubtype = HEADER
0x00, 0x01, // bcdADC = 1.00
0x27, 0x00, // wTotalLength = 30 bytes (AC descriptors)
0x01, // bInCollection
0x01, // baInterfaceNr(1) = 1 (AS interface)
/* Input Terminal Descriptor (Microphone) */
0x0C, // bLength
0x24, // bDescriptorType = CS_INTERFACE
0x02, // bDescriptorSubtype = INPUT_TERMINAL
0x01, // bTerminalID
0x01, 0x02, // wTerminalType = Microphone (0x0201)
0x00, // bAssocTerminal
0x01, // bNrChannels = 1 (Mono)
0x00, 0x00, // wChannelConfig = Mono (no spatial config)
0x00, // iChannelNames
0x00, // iTerminal
/* Feature Unit Descriptor */
0x09, // bLength
0x24, // bDescriptorType = CS_INTERFACE
0x06, // bDescriptorSubtype = FEATURE_UNIT
0x02, // bUnitID
0x01, // bSourceID (Input Terminal = 1)
0x01, // bControlSize = 1 byte per channel
0x03, // bmaControls(0): Mute + volum Master channel
0x00, // bmaControls(1): none for channel 1
0x00, // iFeature
/* Output Terminal Descriptor (USB Streaming) */
0x09, // bLength
0x24, // bDescriptorType = CS_INTERFACE
0x03, // bDescriptorSubtype = OUTPUT_TERMINAL
0x03, // bTerminalID
0x01, 0x01, // wTerminalType = USB Streaming (0x0101)
0x00, // bAssocTerminal
0x01, // bSourceID (Feature Unit = 2)
0x00, // iTerminal
/* -------- Audio Streaming Interface (Interface 1) -------- */
/* AS Interface Descriptor (Alt 0 - Zero Bandwidth) */
0x09, // bLength
0x04, // bDescriptorType = INTERFACE
0x01, // bInterfaceNumber = 1
0x00, // bAlternateSetting = 0
0x00, // bNumEndpoints = 0
0x01, // bInterfaceClass = AUDIO
0x02, // bInterfaceSubClass = AUDIOSTREAMING
0x00, // bInterfaceProtocol
0x00, // iInterface
/* AS Interface Descriptor (Alt 1 - Operational) */
0x09, // bLength
0x04, // bDescriptorType = INTERFACE
0x01, // bInterfaceNumber = 1
0x01, // bAlternateSetting = 1
0x01, // bNumEndpoints = 1 (Iso IN)
0x01, // bInterfaceClass = AUDIO
0x02, // bInterfaceSubClass = AUDIOSTREAMING
0x00, // bInterfaceProtocol
0x00, // iInterface
/* Class-Specific AS General Descriptor */
0x07, // bLength
0x24, // bDescriptorType = CS_INTERFACE
0x01, // bDescriptorSubtype = AS_GENERAL
0x03, // bTerminalLink (Output Terminal ID = 3)
0x01, // bDelay
0x01, 0x00, // wFormatTag = PCM
/* Type I Format Type Descriptor */
0x0B, // bLength
0x24, // bDescriptorType = CS_INTERFACE
0x02, // bDescriptorSubtype = FORMAT_TYPE
0x01, // bFormatType = FORMAT_TYPE_I
0x01, // bNrChannels = 1
0x02, // bSubframeSize = 2 bytes per sample
0x10, // bBitResolution = 16 bits
0x01, // bSamFreqType = 1 (Discrete Sampling Frequency)
0x80, 0xBB, 0x00, // tSamFreq[1] = 48000 Hz (0x00BB80)
/* Standard Endpoint Descriptor (Isochronous IN Audio Data Endpoint) */
0x09, // bLength
0x05, // bDescriptorType = ENDPOINT
0x81, // bEndpointAddress = IN endpoint 1
0x09, // bmAttributes = Isochronous, asynchronous
0x60, 0x00, // wMaxPacketSize = 96 bytes (48kHz x 2 bytes x 1 ch / 1ms)
0x01, // bInterval = 1 (1 ms)
0x00, // bRefresh
0x00, // bSynchAddress
/* Class-Specific Isochronous Audio Data Endpoint Descriptor */
0x07, // bLength
0x25, // bDescriptorType = CS_ENDPOINT
0x01, // bDescriptorSubtype = EP_GENERAL
0x00, // bmAttributes
0x00, // bLockDelayUnits
0x00, 0x00 // wLockDelay
};Init Part:
static uint8_t USBD_AUDIO_Init(USBD_HandleTypeDef *pdev, uint8_t cfgidx)
{
USBD_AUDIO_HandleTypeDef *haudio;
/* Open EP IN for MIC */
USBD_LL_OpenEP(pdev, AUDIO_IN_EP, USBD_EP_TYPE_ISOC, AUDIO_IN_PACKET);
pdev->ep_in[AUDIO_IN_EP & 0xFU].is_used = 1U;
/* Allocate Audio structure */
pdev->pClassData = USBD_malloc(sizeof(USBD_AUDIO_HandleTypeDef));
if (pdev->pClassData == NULL)
{
return USBD_FAIL;
}
/* Binding Class_func */
haudio = (USBD_AUDIO_HandleTypeDef *) pdev->pClassData;
haudio->alt_setting = 1U;
haudio->offset = AUDIO_OFFSET_UNKNOWN;
haudio->wr_ptr = 0U;
haudio->rd_ptr = 0U;
haudio->rd_enable = 1U;
/* Initialize the Audio input (MIC) Hardware layer */
if (((USBD_AUDIO_ItfTypeDef *)pdev->pUserData[0])->Init(AUDIO_IN_FREQ, /* Actually is AUDIO_Init_FS() */
24U, /* 24bit */
1U) != 0)
{
return USBD_FAIL;
}
/* Prepare IN endpoint for first packet */
USBD_LL_Transmit(pdev, AUDIO_IN_EP, haudio->buffer, AUDIO_IN_PACKET);
return USBD_OK;
}static uint8_t USBD_AUDIO_Setup(USBD_HandleTypeDef *pdev,
USBD_SetupReqTypedef *req)
{
USBD_AUDIO_HandleTypeDef *haudio;
uint16_t len;
uint8_t *pbuf;
uint16_t status_info = 0U;
uint8_t ret = USBD_OK;
haudio = (USBD_AUDIO_HandleTypeDef *)pdev->pClassData;
switch (req->bmRequest & USB_REQ_TYPE_MASK)
{
case USB_REQ_TYPE_CLASS:
switch (req->bRequest)
{
case AUDIO_REQ_GET_CUR:
AUDIO_REQ_GetCurrent(pdev, req);
break;
case AUDIO_REQ_SET_CUR:
AUDIO_REQ_SetCurrent(pdev, req);
break;
case AUDIO_REQ_GET_MIN:
{
int16_t vol_min = 0x0000;
USBD_CtlSendData(pdev, (uint8_t *)&vol_min, sizeof(vol_min));
break;
}
case AUDIO_REQ_GET_MAX:
{
int16_t vol_max = 0x6400;
USBD_CtlSendData(pdev, (uint8_t *)&vol_max, sizeof(vol_max));
break;
}
case AUDIO_REQ_GET_RES:
{
int16_t vol_res = 0x0100;
USBD_CtlSendData(pdev, (uint8_t *)&vol_res, sizeof(vol_res));
break;
}
default:
USBD_CtlError(pdev, req);
ret = USBD_FAIL;
break;
}
break;
case USB_REQ_TYPE_STANDARD:
switch (req->bRequest)
{
case USB_REQ_GET_STATUS:
if (pdev->dev_state == USBD_STATE_CONFIGURED)
{
USBD_CtlSendData(pdev, (uint8_t *)(void *)&status_info, 2U);
}
else
{
USBD_CtlError(pdev, req);
ret = USBD_FAIL;
}
break;
case USB_REQ_GET_DESCRIPTOR:
if ((req->wValue >> 8) == AUDIO_DESCRIPTOR_TYPE)
{
pbuf = USBD_AUDIO_CfgDesc + 18;
len = MIN(USB_AUDIO_DESC_SIZ, req->wLength);
USBD_CtlSendData(pdev, pbuf, len);
}
break;
case USB_REQ_GET_INTERFACE:
if (pdev->dev_state == USBD_STATE_CONFIGURED)
{
USBD_CtlSendData(pdev, (uint8_t *)(void *)&haudio->alt_setting, 1U);
}
else
{
USBD_CtlError(pdev, req);
ret = USBD_FAIL;
}
break;
case USB_REQ_SET_INTERFACE:
if (pdev->dev_state == USBD_STATE_CONFIGURED)
{
uint8_t alt = (uint8_t)(req->wValue);
haudio->alt_setting = alt;
if (alt == 1)
{
USBD_LL_OpenEP(pdev,
AUDIO_IN_EP,
USBD_EP_TYPE_ISOC,
AUDIO_IN_PACKET);
pdev->ep_in[AUDIO_IN_EP & 0xFU].is_used = 1U;
USBD_LL_Transmit(pdev,
AUDIO_IN_EP,
(uint8_t *)i2s_dma_buf,
AUDIO_IN_PACKET);
}
else if (alt == 0)
{
USBD_LL_CloseEP(pdev, AUDIO_IN_EP);
pdev->ep_in[AUDIO_IN_EP & 0xFU].is_used = 0U;
}
}
else
{
USBD_CtlError(pdev, req);
ret = USBD_FAIL;
}
break;
default:
USBD_CtlError(pdev, req);
ret = USBD_FAIL;
break;
}
break;
default:
USBD_CtlError(pdev, req);
ret = USBD_FAIL;
break;
}
return ret;

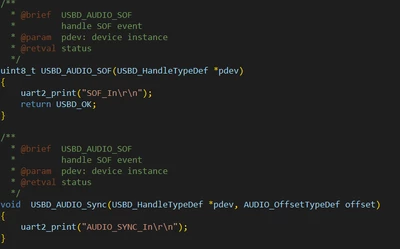

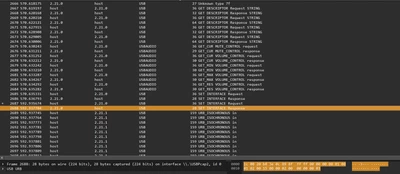

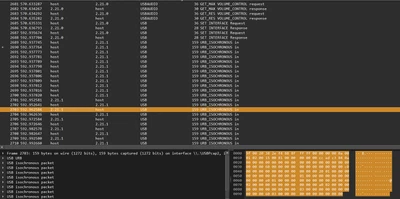

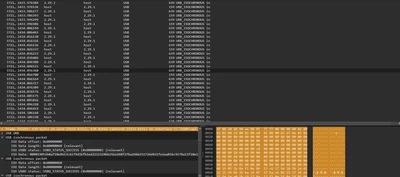

}WireShark result:
