STM32H533 and CubeMX generated project for CubeIDE

[lclor]

Hello,

all my tools are updated to last ones, and software packages too.

I start an empty project using X Cube FreeRtos 1.5 (just a default task).

Play the soft with debug, and after a few seconds, press "Suspend" button to break the running program.

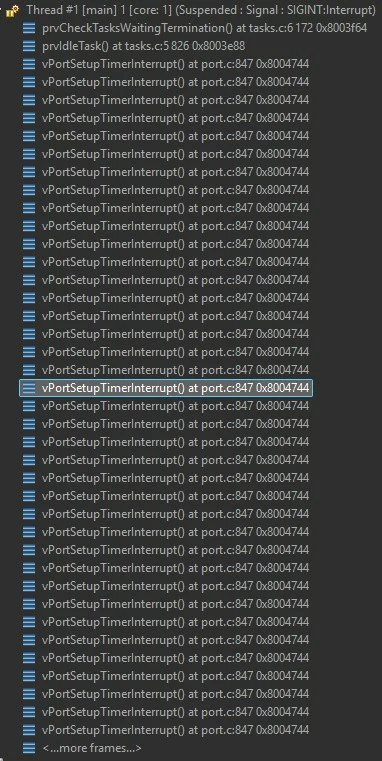

Then, there are a lot of calls to vPortSetupTimerInterrupt function (port.c) in the call stack.

The tick is by default 1ms and cpu clock to 250Mhz.

Not sure that is normal?

thanks for your help

Laurent





[lobna]

Dear @lclor

• Compare your port.c with the one from a fresh, minimal CubeMX project using the same MCU and X‑CUBE‑FreeRTOS 1.5.0.
• Check where the vPortSetupTimerInterrupt function is referenced and what is calling it.
• Did you enabled: a global a tickless idle or any STM32CubeMX “low power tickless” options? If yes Could you disable them, regenerate the project and tell us whether the behavior disappears or not?

Best regards

Lobna



[lclor]

hi,



I have done the exactly same test of new project with CubeMX 6.16.1, and it works normally, the issue comes from the update to CubeMX 6.17.0 (and/or CubeIDE 2.1.0).

Processor : STM32H533CET

the tools used when it works : CubeIDE 2.0.0, CubeMX 6.16.1, Freertos 1.4.

the tools used when it doesn't work : CubeIDE 2.1.0, CubeMX 6.17.0, FreeRTOS 1.5.



For the both I started a new project with only default task of freertos, run the project and done a break.

Project initialize with CubeMX and then import with CubeIDE.



Best regards,

Laurent





[lclor]

thank you for your answer,



yes, at beginning, I saw this behavior in my project, so I started a new project from scratch, and just set FreeRtos, c cpu lock, and SWD. So the port.c file is a fresh one generated by CubeMX. All options are default ones, except heap size, stack size and freertos heap size.

I think, not sure at 100%, but before upgrading (yesterday) my CubeIDE, CubeMX and freertos package, I didn't have this issue, because I have done some debug sessions with my project RS232 link, and I didn't remember seeing this list of function call : vPortSetupTimerInterrupt.

vPortSetupTimerInterrupt is called by xPortStartScheduler, I suppose this function is called only one time ?!





[lclor]

USE_TICKLESS_IDLE is disabled by default.

[lobna]

dear @lclor

Could you provide your ioc file

thanks in advance

Lobna

[lclor]

Hi,

yes this are the both IOC file, one made with Cube MX 6.16.1 and one made with Cube MX 6.17.0



Best regards,

[williamsmithjoul12]

Thanks for sharing your setup! For anyone diving into STM32 projects and looking for some fun breaks in between debugging, cf999 game is a neat way to unwind.

[lclor]

The default comes from STM32CubeIDE, a ticket is opened.

[mƎALLEm]

@lclor

---

@lclor wrote:

The default comes from STM32CubeIDE, a ticket is opened.

---

Hello,

Could you please indicate which ticket you are referring to?

[mƎALLEm]

@lclor

---

Could you please indicate which ticket you are referring to?

---

After an internal discussion with @lobna , it seems you had a private discussion when @lobna shared with you the ticket number.
Meanwhile, I need to unmark your post and mark the post of @lobna as solution as she's the one that worked on the case and provided the answer.

Thank you for your understanding.

[lobna]

Dear @Iclolor

As you know After investigation, the execution flow of the application is correct, and the issue lies only in the representation of the call stack in the debugger. For internal tracking, the opened ticket number is:  CDM0061147
