STM32H7S78-DK USB hangs in init

[mtc65536]

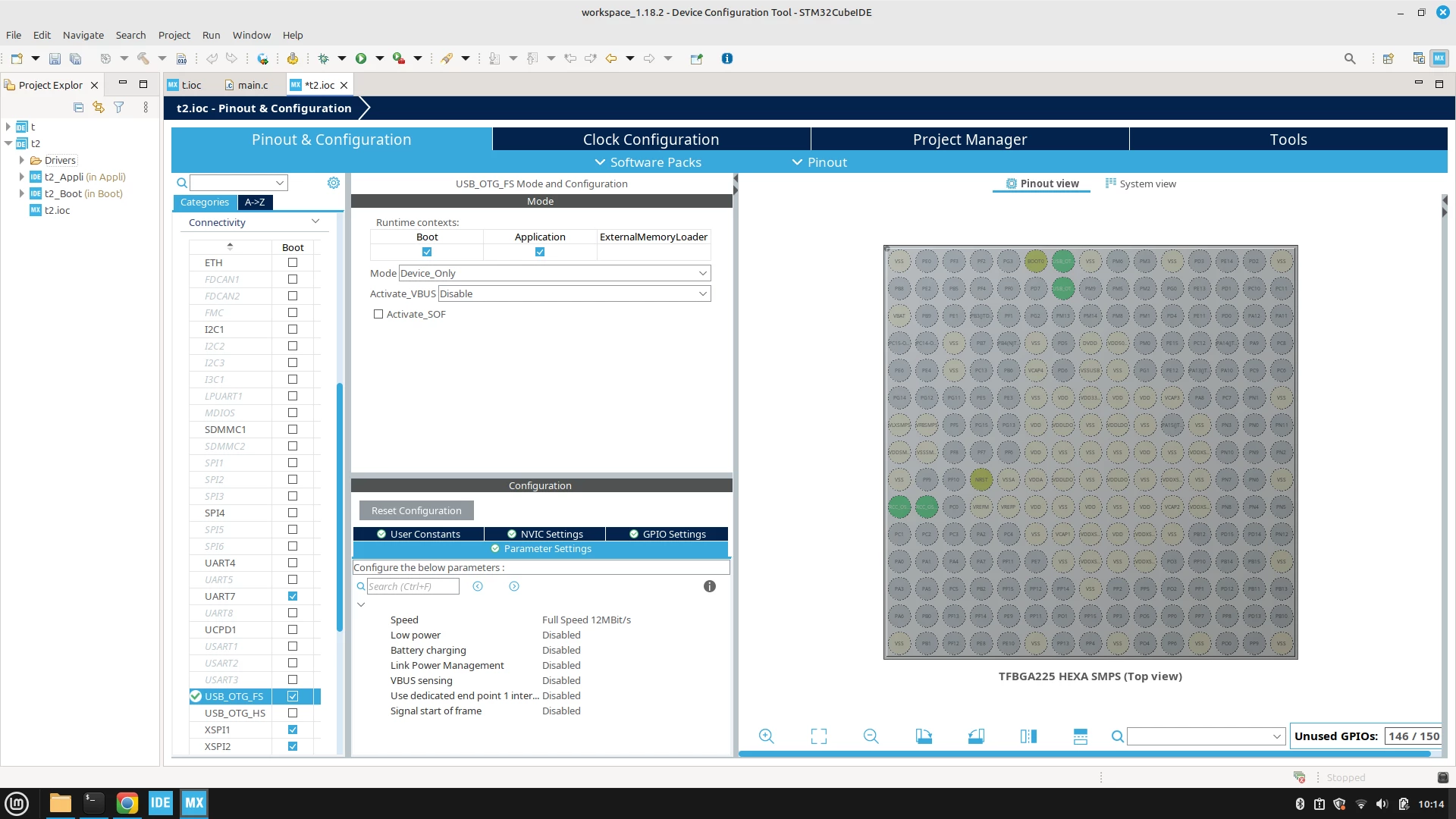

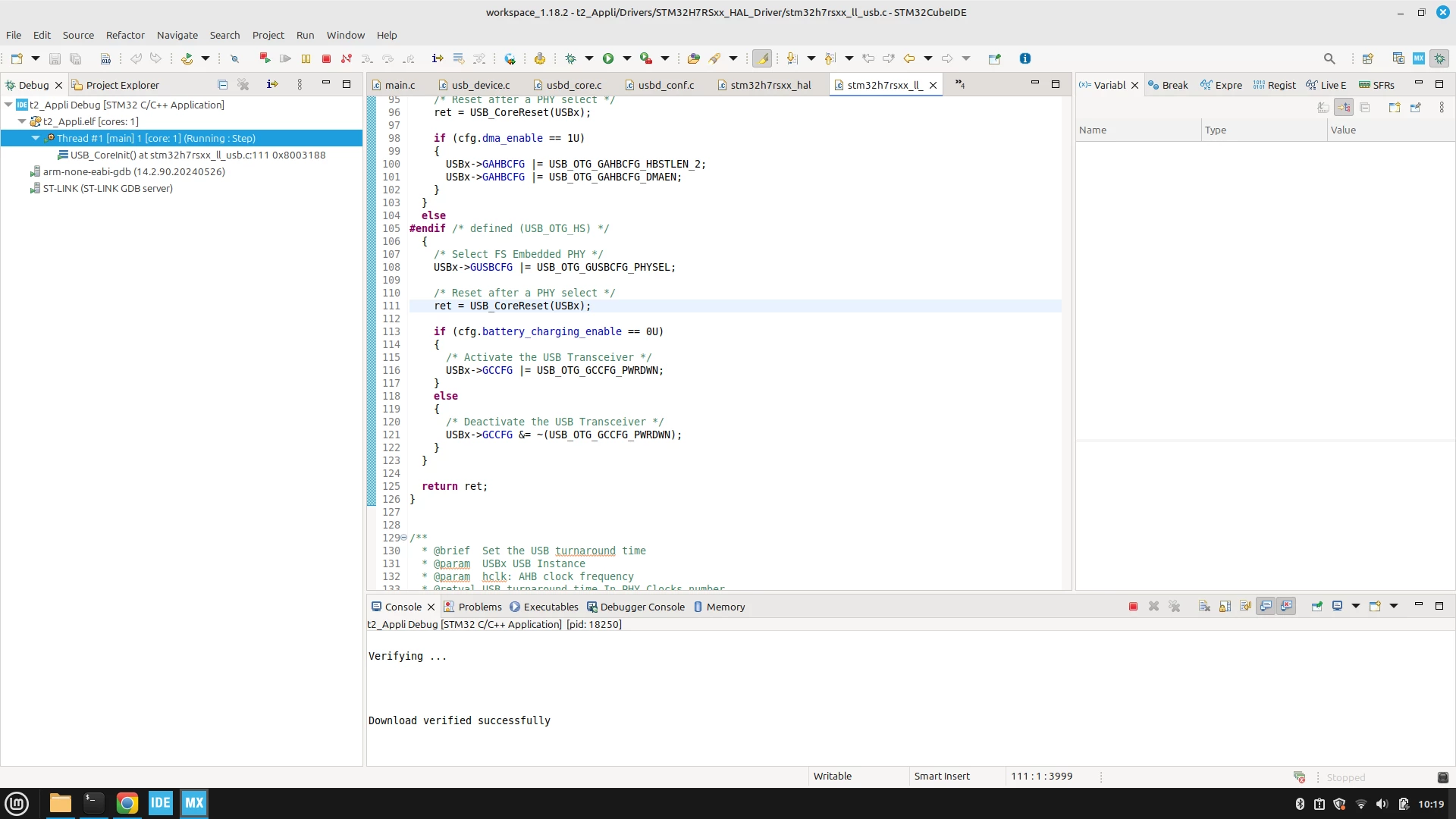

Hello, I am trying to utilize the USB peripheral in STM32cubeIDE with the STM32H7S78-DK. It hangs forever in MX_USB_INIT on a function USB CORE RESET. With FS and HS this same issue seems to be happening. Pictures show config in the GUI and the aforementioned function.

[AScha.3]

Hi,

So you have device USB enabled,

For... What kind of device?

I don't see any...

What you want?



[mtc65536]

Hello,
I wish to use it as communication device class, or human interface device class. At the moment I have been configuring it as communication device class in the GUI.

[AScha.3]

So you set CDC/VCP in Cube?

Int for USB enabled in NVIC settings?

Then it should work, out of the box.

But I don't yet try it on H7S7, only H743, H7A3...

So no guarantees....

[Jorge Alves]

Hello @mtc65536

I have the same problem, the application hangs at USB CORE RESET,  and I don't understand why. Did you solve the problem?

[Jorge Alves]

I solved the problem following this link: https://community.st.com/t5/stm32-mcus/faq-troubleshooting-a-usb-core-soft-reset-stuck-on-an-stm32/ta-p/803224
