Question

stm32u585 sleep

  • July 29, 2025
  • 4 replies
  • 449 views

hi,

 am using stm32u585iot dev board i need all power code stop and shutdown and standby code for that board?

4 replies

Andrew Neil
Andrew Neil
Super User
July 29, 2025

You mean the B-U585I-IOT02A ?

https://www.st.com/en/evaluation-tools/b-u585i-iot02a.html



If so, have you looked under 'Tools & Software':

https://www.st.com/en/evaluation-tools/b-u585i-iot02a.html#tools-software



Also look at the STM32CubeU5 pack:

https://www.st.com/en/embedded-software/stm32cubeu5.html

whence AN5701 Introduction to STM32Cube MCU Package examples for STM32U5 MCUs:

https://www.st.com/resource/en/application_note/an5701-introduction-to-stm32cube-mcu-package-examples-for-stm32u5-mcus-stmicroelectronics.pdf



A complex system that works is invariably found to have evolved from a simple system that worked.A complex system designed from scratch never works and cannot be patched up to make it work.
I
Imen.D
Technical Moderator
July 29, 2025



Hello @shivss

I recommend you this article explains low-power modes, and provides code examples: Getting started with PWR - stm32mcu

Refer also to the PWR examples within B-U585I-IOT02A board:

STM32CubeU5/Projects/B-U585I-IOT02A/Examples/PWR at main · STMicroelectronics/STM32CubeU5 · GitHub

"When your question is answered, please close this topic by clicking ""Accept as Solution"".ThanksImen"
    S
    shivssAuthor
    Associate III
    July 30, 2025

    Hi @Imen.D @Andrew Neil



    yes B-U585I-IOT02A  this board only .

    The examples in GitHub is for switch but I need with RTC timer wakeup

    S
    Saket_Om
    Technical Moderator
    July 31, 2025

    Hello @shivss

    Did you check this example below:

    STM32CubeL4/Projects/NUCLEO-L452RE/Examples/RTC/RTC_LowPower_STANDBY at master · STMicroelectronics/STM32CubeL4 · GitHub

    "To give better visibility on the answered topics, please click on ""Accept as Solution"" on the reply which solved your issue or answered your question.Saket_Om"
    S
    shivssAuthor
    Associate III
    July 31, 2025

    Hi ,

     its an RTC alarm not RTC Timer wakeup ?  like this?

    (HAL_RTCEx_SetWakeUpTimer_IT(&hrtc, 0, RTC_WAKEUPCLOCK_RTCCLK_DIV16, 0)



    S
    Saket_Om
    Technical Moderator
    August 1, 2025

    Hello @shivss

    Are you using the LSE as RTC clock source ?

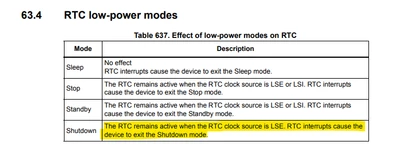

    According to the reference manual the RTC remain active only when the RTC clock source is LSE.






    "To give better visibility on the answered topics, please click on ""Accept as Solution"" on the reply which solved your issue or answered your question.Saket_Om"
    S
    shivssAuthor
    Associate III
    August 4, 2025

    Hi,

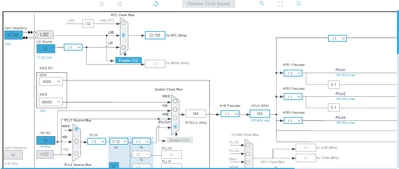

     yes am using LSE
