The OPAMP_CSR_OPARANGE bit in NUCLEO-U575ZI-Q is not shown during debug mode

Hello everyone!

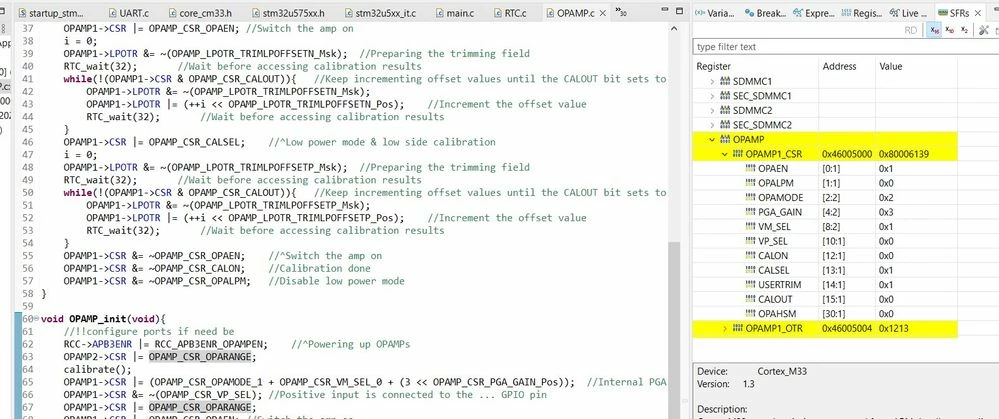

I have just noticed that The OPAMP_CSR_OPARANGE bit in NUCLEO-U575ZI-Q is not shown during debug mode. Some bug perhaps?..

This topic has been closed for replies.

Best answer by KDJEM.1

Hello @Skfir,

Thank you for bringing this issue our attention.

I confirm the issue: The 31 bit filed "OPA_RANGE" for the OPAMP1_CSR register is missing in the STM32U5.svd file.

I reported internally.

Internal ticket number: 142108 (This is an internal tracking number and is not accessible or usable by customers).

Kaouthar

KDJEM.1Best answer

Technical Moderator

Hello @Skfir,

Thank you for bringing this issue our attention.

I confirm the issue: The 31 bit filed "OPA_RANGE" for the OPAMP1_CSR register is missing in the STM32U5.svd file.

I reported internally.

Internal ticket number: 142108 (This is an internal tracking number and is not accessible or usable by customers).

Kaouthar

To give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.

Technical Moderator

Hello @Skfir ;

Thank you for your contribution in STCommunity.

Kaouthar

To give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.
