Availability of the X-NUCLEO-IHM09M1 vs. M2

[Tedco]

1) There is no availability of the X-NUCLEO-IHM09M1 at Mouser or Digikey. Both vendors do, however, have stock of the X-NUCLEO-IHM09M2. Has the M1 been discontinued? Please let me know if there is any difference between the M1 and the M2.

2) If it turns out that the M2 replaces the M1, does SB26 still need to be removed? It’s going to be very difficult to remove SB26 without damaging the board due to its tiny size and awkward location.

3) I also need the specs and part number on the 34 pin ribbon cable that interfaces the B-G473E-ZEST1S controller board to the STEVAL-IPM30B evaluation board.

[Andrew Neil]

---

@Tedco wrote:

Has the M1 been discontinued?

---

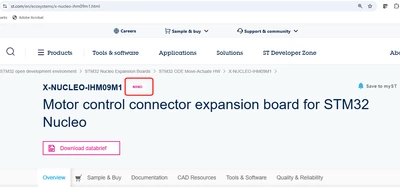

It is marked as NRND (Not Recommended for New Designs):

https://www.st.com/en/ecosystems/x-nucleo-ihm09m1.html

Which probably means they're not making any more - so once all that's in the distribution channel has gone, there'll be no more.



---

@Tedco wrote:

 Please let me know if there is any difference between the M1 and the M2.

---

Check out the documentation of the two:

https://www.st.com/en/ecosystems/x-nucleo-ihm09m1.html#documentation

https://www.st.com/en/ecosystems/x-nucleo-ihm09m2.html#documentation



You can also compare the schematics:

https://www.st.com/en/ecosystems/x-nucleo-ihm09m1.html#cad-resources

https://www.st.com/en/ecosystems/x-nucleo-ihm09m2.html#cad-resources

[Tedco]

This doesn't tell me if the M2 is a drop-in replacement for the M1. Can someone please advise?

[Tedco]

Still need an answer. Is M2 and drop in replacement for M1

[Rodo]

Never mind. Info already provided by Andrew. I couldn't find the "delete reply" button.

[Jacob WOODRUFF]

Hi All,



This post has been escalated to the ST Online Support Team for additional assistance. We'll contact you directly.



Regards,
Jake

ST Support

[Tedco]

Thanks Jacob!
